Large Scale DSO Example: Postprocess the Results
Once the job is done, output is available in the ~\relay_nominal.aedt\jobid\results folder. Each variation creates a subfolder, which in turn has one CSV file per trace of each report. See the detailed information regarding job monitoring and the location of the analysis logs.

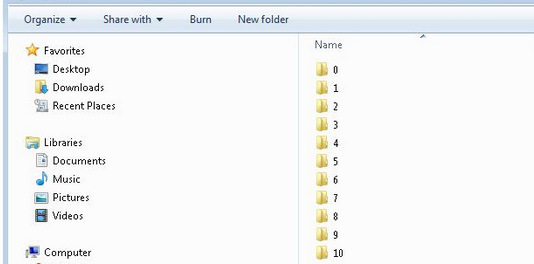

The following figure shows the results for ten variations as located in ten folders:
Within each folder will be csv files corresponding to the traces for each variation.
You have three options for post-processing csv files.
- Import Large Scale DSO Dataset Solution
- Use Microsoft Excel or any other application that has csv postprocessing functionality.
- Parse the csv output into your custom program, for any downstream flow.
