Import Large Scale DSO Dataset Solution

For postprocessing large scale DSO dataset solutions in the desktop, you create a dataset solution through the Import Large Scale DSO Solution command and pointing to Large Scale DSO job’s top level results folder.

  1. Import solved large scale DSO solution. You can do this in two ways:

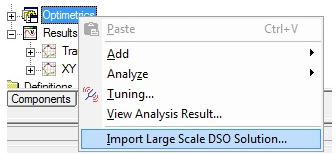

In the Project Manager tree, right-click on Optimetrics and from the menu click Import Large Scale DSO Solution.

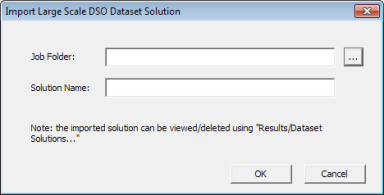

This opens the Import Large Scale DSO Dataset Solution dialog box.

From here you can browse to the results of a Large Scale DSO job and select a job folder. Click the ellipsis button [...] to open the browser window. Navigate to the results directory to see the results, organized by the scheduler prefix and job ID number. To select a results dataset, double-click on the results folder name. See Large Scale DSO Results Database Organization.

Click, OK to import the Dataset. If you have selected the solution folder correctly the dialog closes. If not, an error dialog opens.

  1. To View/Delete created dataset solutions:

In the Project Manager tree, right-click on Results and from the menu click Dataset Solutions....

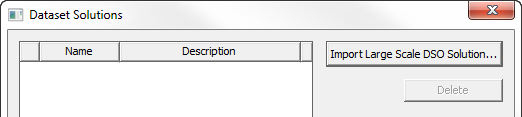

This displays the Dataset Solutions dialog.

The dialog lists any existing datasets. You can delete one or more by selecting from the list and selecting Delete. The ImportLarge Scale DSO Solution button opens the dialog for importing a dataset solution.

  1. To create a Dataset Report

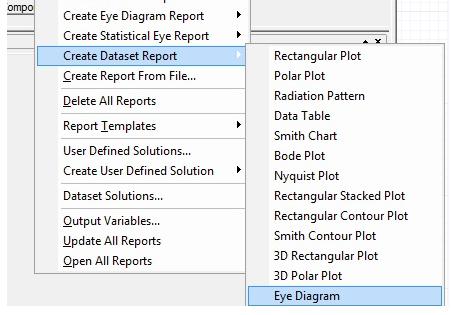

After you have imported one or more DSO solutions, you can create a Dataset Report. Right-click on Results and from the menu select Create Dataset Report, and the type of report:

This opens a reporter window from which you can create a report. If you have previously created an eye diagram report and it is included in the DSO solution data extraction, you can use Create Dataset Report > Eye Diagram to recreate this report.

  1. Cloning from a Dataset Solution

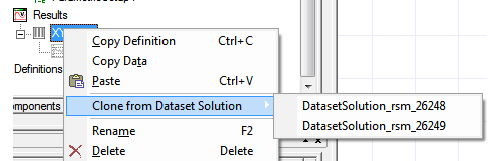

If you re-open a project that was solved using large scale DSO, you can quickly clone a report for a solved large scale DSO solution by right-clicking in the Project tree on the report, and choosing Clone from Dataset Solution..., provided this report is qualified for Large Scale DSO data extraction. The provides a way that you can reuse the existing report definition and save the work of creating new report.
