Imprinting an Object

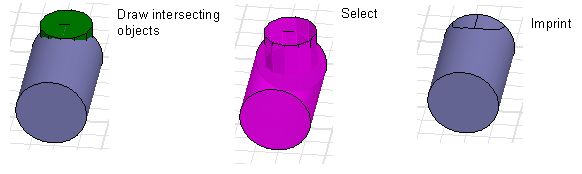

The Boolean > Imprint command lets you imprint the geometry of one object upon another. For example, you could draw a polyhedron intersecting a cylinder, and then imprint the intersecting lines on the cylinder.

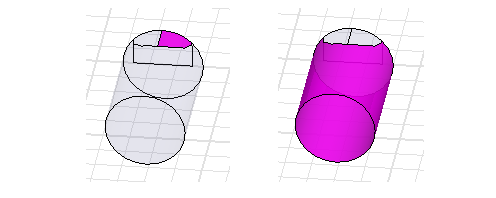

You can select the faces of the imprinted surface separately and assign properties as needed.
To imprint one object with another:
- Select the intersecting objects.
- Click Modeler > Boolean > Imprint...
- Click OK.

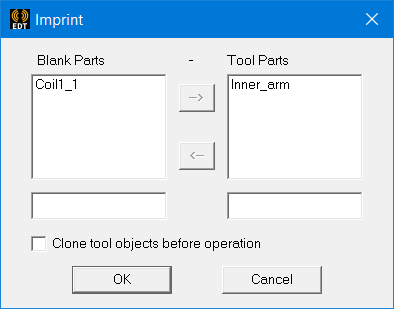

This displays the Imprint dialog in which you designate which objects are the Blank Parts, and which the Tool Parts. If necessary, you can select the objects in lists, and use the arrow keys to move them. If desired, you can clone the tool objects before the imprint operation.
This closes the dialog and performs the boolean imprinting.
After you perform the imprinting, the History tree retains the Imprint Object command and the create command for the imprinted object
If you select the Imprint command in the History tree, you can suppress the command via the Properties window. If you select the Create <object> icon for the object, you can edit the properties of that object. The changes applied to the object carry over to the imprinting.
