Large Scale DSO Results Database Organization
A large scale DSO analysis does not support the output of full parametric results. Instead, it extracts 'subset' results using predefined Rectangular plots, which are created by the user before the job is run. The extracted columns of data are saved as CSV files. Typically, there is one CSV file per-trace, per-variation. (Note: Non-Rectangular plots of the design (for e.g. statistical eye, digital plot) are not extracted)
The results of a large scale DSO job are located in the <workdir>/<jobid>/results folder. If 'workdir' is not specified on the job command-line, it is same as the input project's results folder. For example the default 'workdir' corresponding to \\shared\projects\relay.aedt is \\shared\projects\relay.aedtresults. Within this results folder, there is one folder per variation. The name of the variation's folder is an integer number corresponding to variation's index in the parametric table. For example, a variation-folder named '4' has results for the fifth row of parametric table, while a variation-folder named '0' has results for the first row of the table.

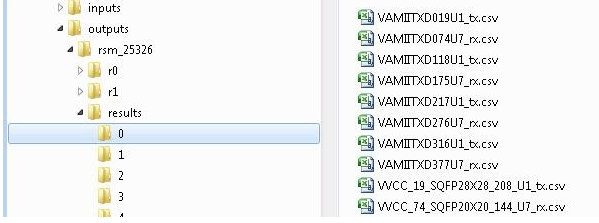

Below is a sample results folder showing the contents corresponding to results of first variation. There are ten CSV files corresponding to ten predefined traces:
