Defining an Outer-Rotor Induction Machine

Note: Refer to Analysis Approach for Three-Phase Induction Motors for general information on this machine type.

The general procedure for defining an Outer-Rotor Induction Machine is as follows:

Insert an Outer-Rotor Induction Machine into a new or existing project by choosing Generate RMxprt Solutions for the Design Flow, General for the Machine Type, then select Outer-Rotor Induction Machine from the expandable list.

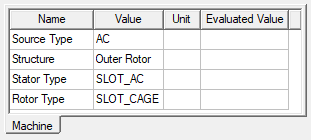

Click the Machine entry in the project tree to set the machine properties as shown:
Click to expand the Machine > Stator entry in the Project Manager tree to define data for the stator and its associated core and core slot, winding, and optionally, vent for the SLOT_AC core type.
Click to expand the Machine > Rotor entry in the Project Manager tree to define data for the rotor and its associated core, damper and damper slot, and optionally, vent for the SLOT_CAGE core type.
Click the Machine > Shaft entry in the Project Managertree to define the magnetism, frictional and windage losses, and reference speed of the shaft.
Right-click Analysis in the Project Manager tree, and click Add Solution Setup to define the solution data.
Choose File > Save to save the project.
Choose RMxprt > Analyze to analyze the design.

Once analyzed, the model can be used to create a new Maxwell 2D or 3D design.
