ClawPoleCore UDP
The ClawPoleCore UDP is used to create the claw-pole rotor core, a field winding and/or a PM for claw-pole alternators. It can also create a coil terminal for current assignment.
|
Property |
Description |
|
DiaGap |
Core diameter on gap side, DiaGap<DiaShaft for outer cores. |
|
DiaShaft |
Core diameter on shaft side, DiaShaft<DiaGap for inner cores. |
|
Length |
Core length. |
|
Poles |
Number of poles. |
|
EmbraceTip |
Embrace of pole tip. |
|
EmbraceRoot |
Embrace of pole root. |
|
ThickTip |
Thickness of pole tip. |
|
ThickRoot |
Thickness of pole root. |
|
ThickShoe |
Thickness of side shoes. |
|
DepthSlot |
Depth of slot between two poles. |
|
ThickYoke |
Thickness of yoke. |
|
LengthPole |
Length of pole from tip to tip. |
|
LengthMag |
Length of magnet or the second air-gap. |
|
SegAngle |
Deviation angle for skewed pole sides (1~10, <1 for true surface). |
|
LenRegion |
Region length. |
|
InfoCore |
0: core; 1: core & coil; 2: coil; 3: magnet; 4: terminal; 100: region. |
These parameters are used in the following figures. Transparent Claw Pole Core (InfoCore set to 0) is in transparent to show parameters EmbraceTip and EmbraceRoot which otherwise are hard to show. For LengthMag parameter, refer to LengthMag of a magnet of ClawPoleCore.

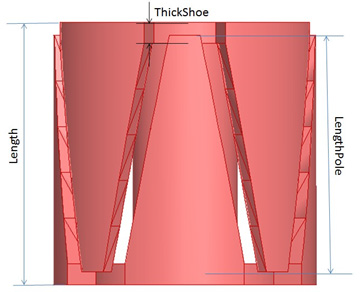

Claw Pole Core (InfoCore set to 0)

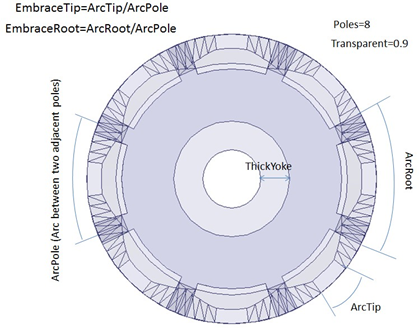

Transparent Claw Pole Core (InfoCore set to 0)
