3D Modeler Options: Discovery Link Options

Under 3D Modeler options, Discovery Link options determine how linked Discovery projects are imported.

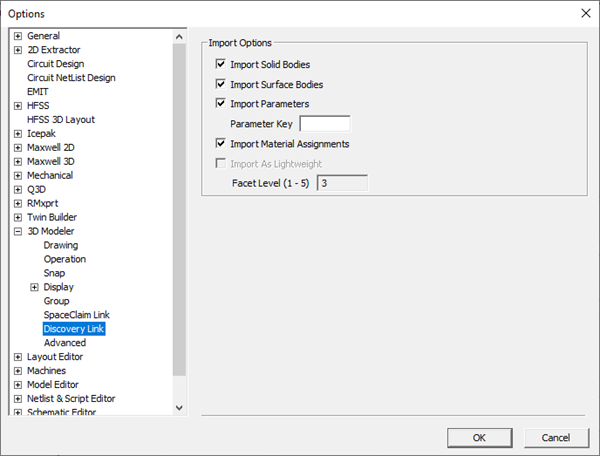

The Tools Options General options window with 3D Modeler Discovery Link displayed

To specify Discovery link settings, select or clear the following check boxes in the Discovery Link section:

Import Solid Bodies – Enabled by default.
Import Surface Bodies – Enabled by default.
Import Parameters – Enabled by default.
- Parameter Key – A string used to filter out parameters. By default no string is entered, and all Discovery parameters are imported.
Import Material Assignments – Enabled by default. Note that this imports material assignments, but not material properties. A material with exact name must already exist, otherwise, validation issues a violation.
