Solving a Single Setup or Sweep

To run a single setup or sweep:

  1. Select a solution setup or sweep in the Project Manager.

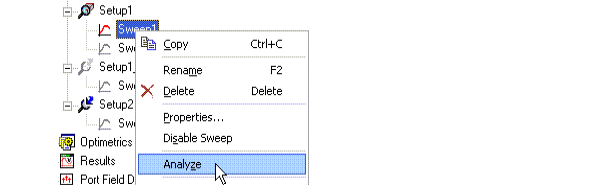

  2. Right-click and select Analyze from the shortcut menu. The graphic shows a single sweep selected for analysis.

    3. Right-click Setup menu, Analyze All option highlighted.

    The 3D field solution is computed inside the structure for a solution. For a select sweep, it is computed for the sweep variables.

    When you right-click a Setup, rather than a Sweep, the shortcut menu also includes the Submit Job... command.

    Submit Jobs button.

    For more information on the Submit Job... command see, Distributed Analysis and High Performance Computing (HPC) Integration.

To run more than one analysis at a time, follow the same procedure while a simulation is running. If you have enabled queuing, the next solution setup will be solved when the previous solution is complete.

Note:

If a linked dependency in the setup is already simulating (for example, due to setup links to the same external source for a near or far field wave, or a magnetic bias), Ansys Electronics Desktop will not allow another dependent simulation to start until the first use of the source has completed.
