Healing with CAD Integration

It is not possible to use the Heal command in Ansys Electromagnetics Modeler. Instead similar healing options are available under UDM properties option tab.

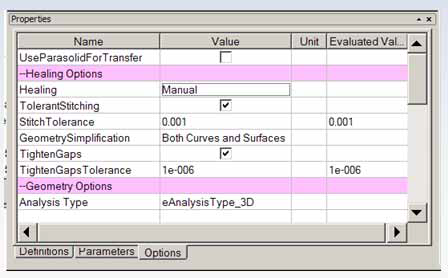

Properties Window, Options tab.

Healing options are None, Auto and Manual. By default, healing is off (None) and should be turned on only if required.
