Using Piecewise Linear Functions in Expressions

The following piecewise linear intrinsic functions are accepted in expressions:

• pwl (dataset_expression, variable) – interpolates along the X-axis and returns a corresponding Y value.
• pwlx (dataset_expression, variable) – interpolates along the X-axis and returns a corresponding Y value.
• pwl_periodic (dataset_expression, variable) – also interpolates along the X-axis, but periodically.

You can use pwl in an expression that uses datasets for such things as a frequency dependent material property (See: Adding Datasets).

For example, you can specify BulkConductivity as:

pwlx($ds1, Freq)

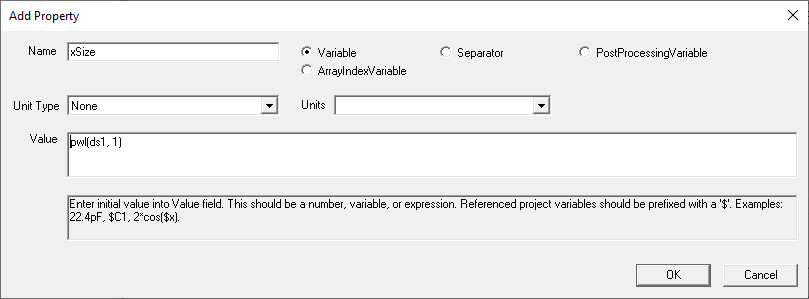

You can create a design variable representing a dimension xSize as pwl(ds1, 1) where ds1 is a dataset.

Doing so looks like this:

After the dataset is configured, the Properties window shows the new variable.

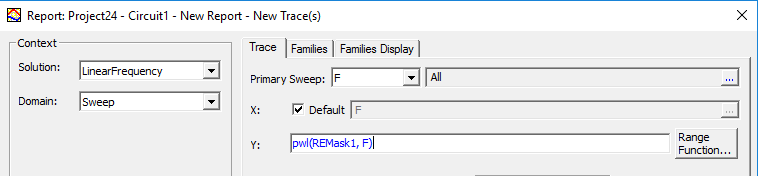

To use datasets in reports, create a report using pwl(dataset_expression,variable) where variable is the primary sweep in the report.

For example:
