Editing Datasets

To modify an existing dataset:

  1. Access the Datasets window:
    • For project-level datasets, click Project > Datasets.
    • For design-level datasets, click HFSS > Design Datasets.

    The Datasets window appears, listing any project or design-level datasets.

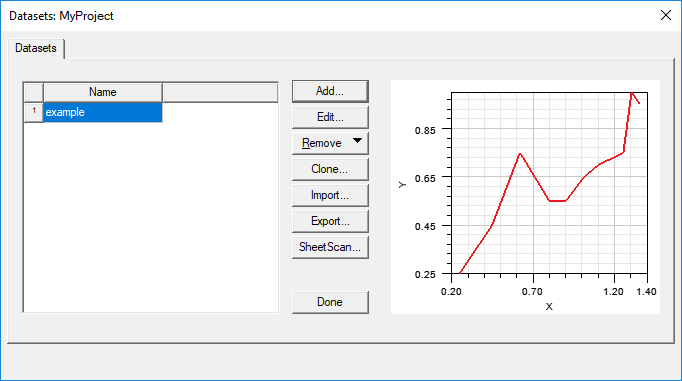

    Dataset window. Example dataset listed

  2. Click Edit.

    The Edit Dataset window appears.

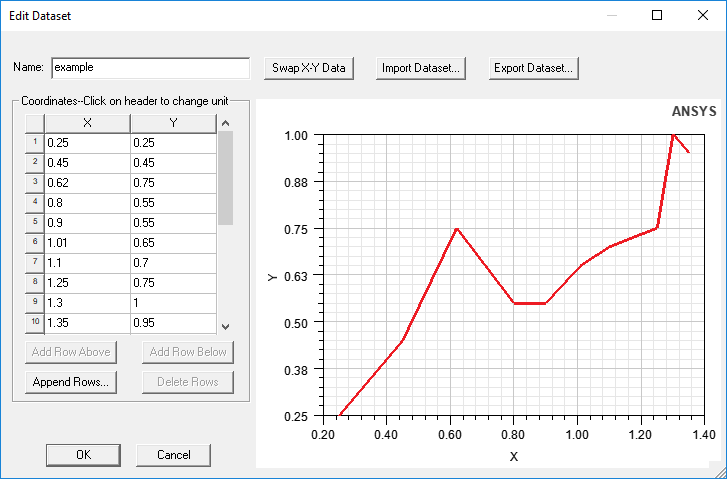

    Edit Dataset Window- XY coordinates filled example.

  3. Change the Name and X/Y coordinates as desired.
  4. When you are finished, click OK to exit the Edit Dataset window.
  5. Click Done to exit the Datasets window.
