Project Manager Window

The Project Manager window displays the open project's structure, which is referred to as the project tree.

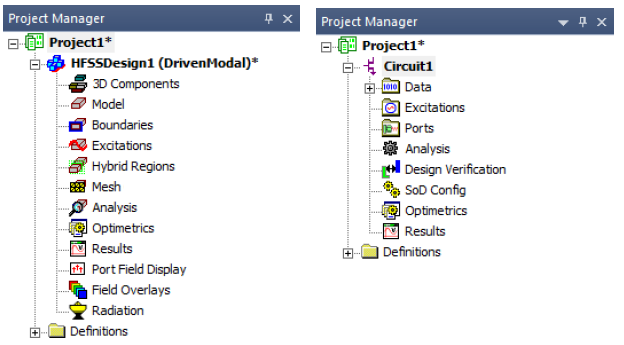

The Project Manager window displays details about all open Ansys Electronics Desktop projects. The tree display is specific to the design type. For example:

• For any HFSS, Maxwell, or Q3D design, each project ultimately includes a geometric model, its boundary conditions and material assignments, and field solution and post-processing information. Any 3D Components appear under the 3D Components icon.
• For a Circuit design, the project includes data, excitations, ports, analysis setup, design verification, SoD configuration, Optimetrics, results, and relevant definitions.

To show or hide the Project Manager window, do one of the following:

• Click View > Project Manager.

A check box appears next to this command if the Project Manager window is visible.

• Right-click in the toolbars area on the desktop, and then click Project Manager on the shortcut menu.

A check box appears next to this command if the Project Manager window is visible.
