Example Projects

Your Ansys Electronics Desktop installation includes an example directory containing projects folders for several kinds of designs.

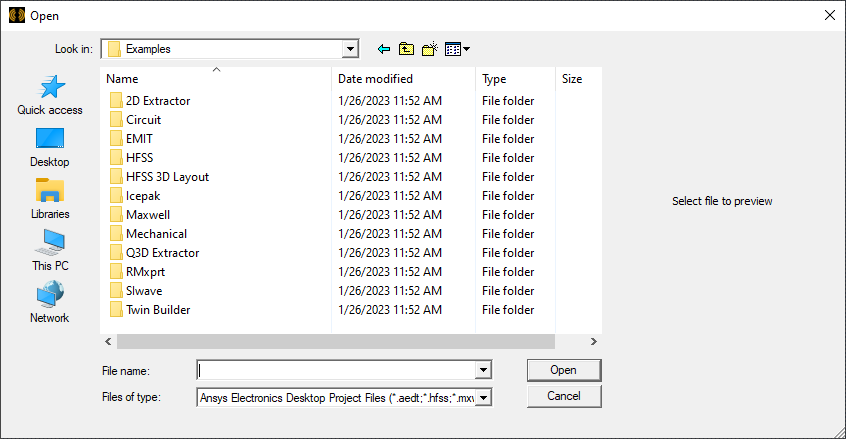

Example Projects shown in the Ansys File Explorer Window

Example projects are organized by the design type. The examples under Circuit, HFSS, and HFSS 3D Layout include subfolders, organizing the projects according to different applications:

Several of these projects are associated with detailed getting started guides.

Many other projects include descriptions in the help.

HFSS Examples

The example models are provided as an additional applications resource and are included with the software installation.

Many, but not all, of the following HFSS example projects have descriptions included in the help. They are organized by category—ADAS, Antennas, EMI EMC, RCS, Signal Integrity, Metamaterial, RF Microwave, and Transmission Lines. For models with included descriptions in the HFSS help, the icons in the figures are linked to the associated topic.

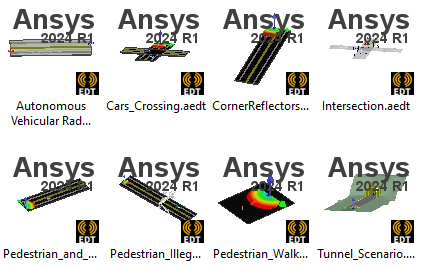

ADAS Examples (Advanced Driver Assistance Systems)

Advanced Driver Assistance Example Model graphics.

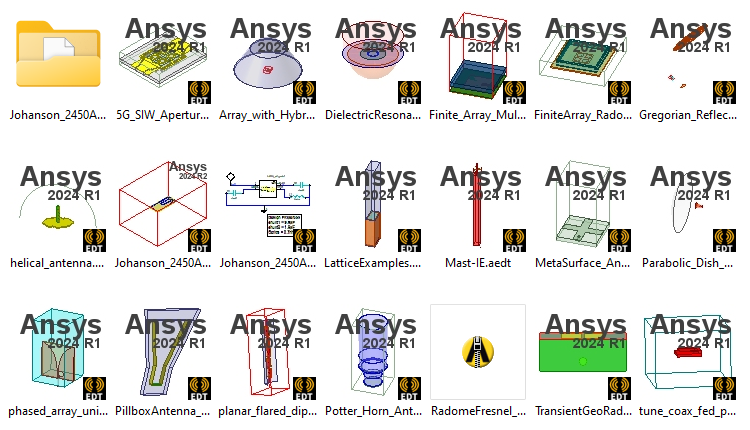

Antenna Examples

Antenna Model example graphics

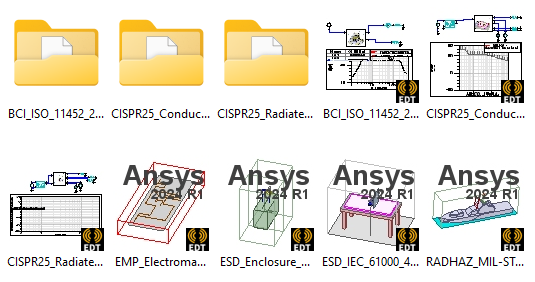

EMI EMC Examples (Electromagnetic Interference, Electromagnetic Compatibility)

Electromagnetic interference and electromagnetic compatibility models.

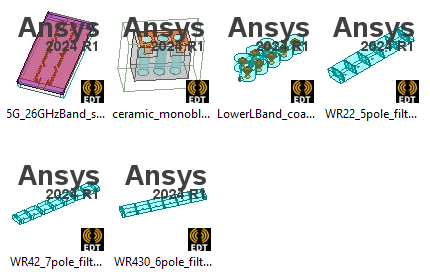

Filter Examples

Filter Graphics

Metamaterial Examples

HFSS Metamaterial examples

RCS Examples (Radar Cross Section)

Radar Cross Section exampel graphics

RF Microwave Examples

RF Microwave antenna example graphics

Signal Integrity Examples

Signal integrity example graphics

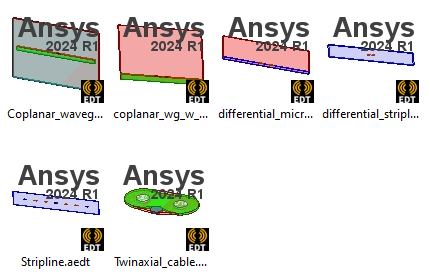

Transmission Line Examples

Transmission line example graphics

For further examples, see the HFSS Getting Started Guides (link below).
