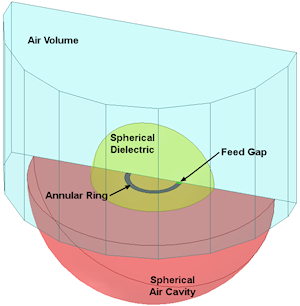

Dielectric Resonator Antenna
The dra_diel model in the ...Examples/Electronics Desktop/HFSS/Antennas subfolder contains the modal solution project described in the following getting started guide:
This design demonstrates the use of:
- Boolean operations on geometries
- the use of symmetry and radiation boundaries
- meshing
- lumped ports
- modifying the impedance multiplier because of symmetry

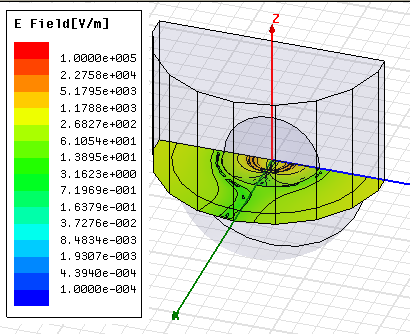

- animation of a field plot
- setting up an infinite sphere and computing antenna parameters
