Edit Component Properties window
To open the Properties window for a selected component,
double-click the component definition in the Project Manager window to open the
Edit Components window. Then, in the Edit Components window,
click Properties to open the window.

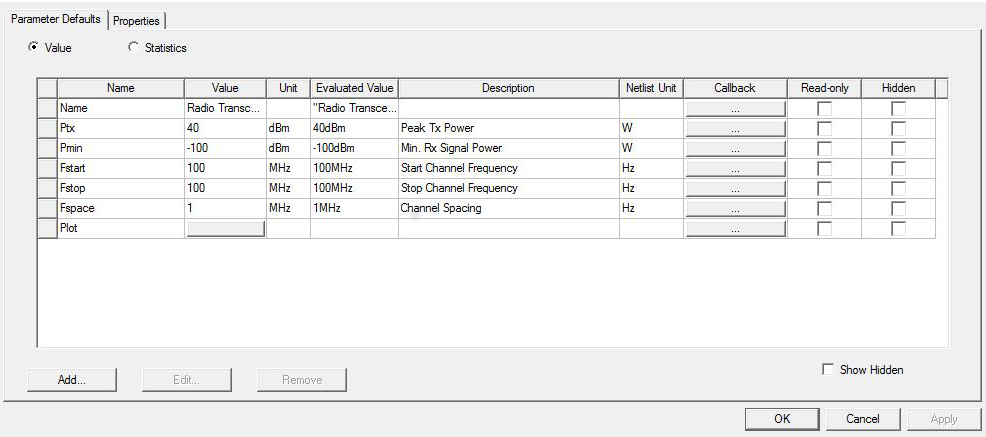

Parameter Defaults Tab
This tab displays and sets the default values for component parameters for general analysis (Value display) or statistical analysis (Statistics display).
When this option is selected, the Parameter Defaults tab lists, displays, and sets the default values for component parameters during general analysis.

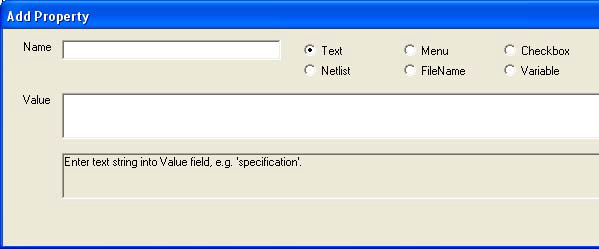

Adding Parameters
Use Add to add a parameter to the definition. You are prompted to define the parameter name, value, and value type (text input, menu, check box, etc.). You may not add reserved system parameters to the definition.
Removing Properties
To remove a property on a component, select the property and click Remove. The property is deleted on the component definition (model) and from all instances in the design.
Removing a property from a component from an Electronics Desktop component library may produce undesirable results when the component is simulated.
