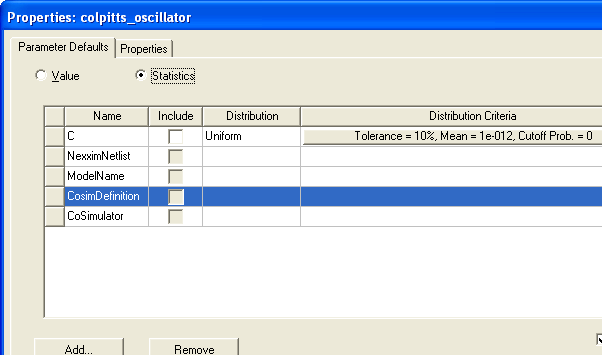

Parameter Statistics Display

When this option is selected, the Parameter Defaults tab lists, displays, and sets the default statistics for component parameters during general analysis.

Name —Displays the names of component parameters.

Include —Controls whether or not the associated component parameter is varied during statistical analysis. Check Include for each parameter you want Electronics Desktop to vary during statistical analysis.

Distribution —Displays and controls whether the parameter value distribution is Uniform or Gaussian. To change the Distribution setting, click in the cell to open the options, then click the option you want.

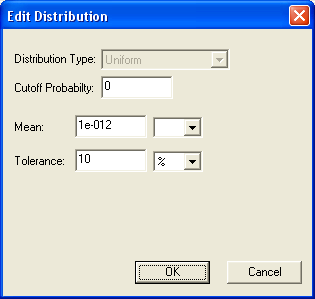

Distribution Criteria —Click the display bar to open the Edit Distribution window. The Distribution Type drop-down menu displays whether the distribution is Uniform or Gaussian, and you can specify values for Cutoff Probability, Mean, and Tolerance. Units for Mean and Tolerance can be set using their adjacent dropdown menus.

Click OK to save your changes and close the window, or click Cancel to close the window without saving any changes.
