Viewing Green's Function Data

Either during analysis of a RaptorX solution setup or by selecting Generate Green's Function Data, the design's current stackup parameters are compiled and entered into a reference database. If the design is not altered, reusing the gathered data will speed up future RaptorX simulations.

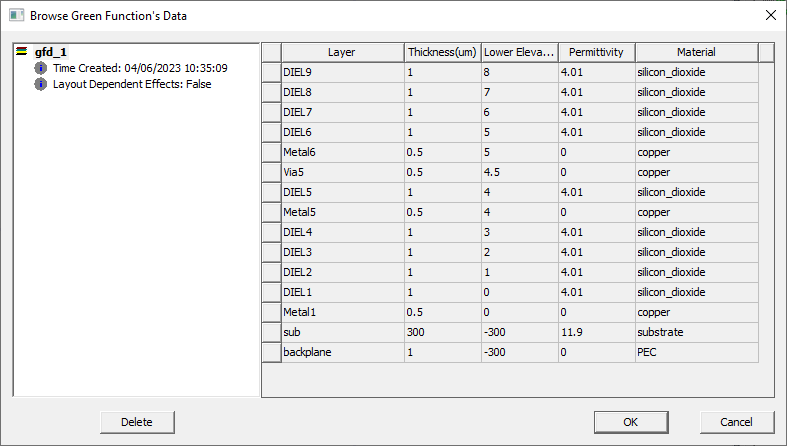

To open the Browse Green's Function Data window, do either of the following:

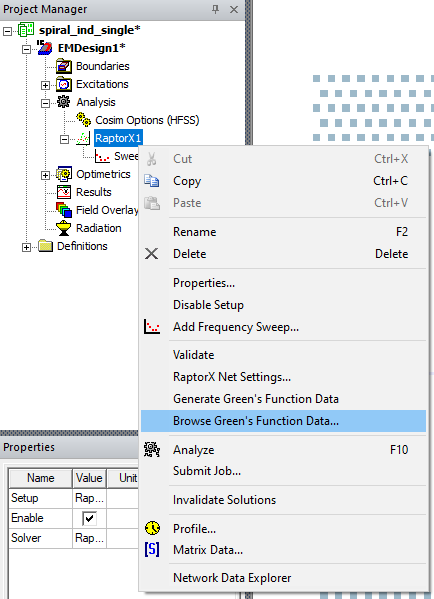

• From the Project Manager window, right-click the RaptorX solution setup (e.g., RaptorX1) and select Browse Green's Function Data.

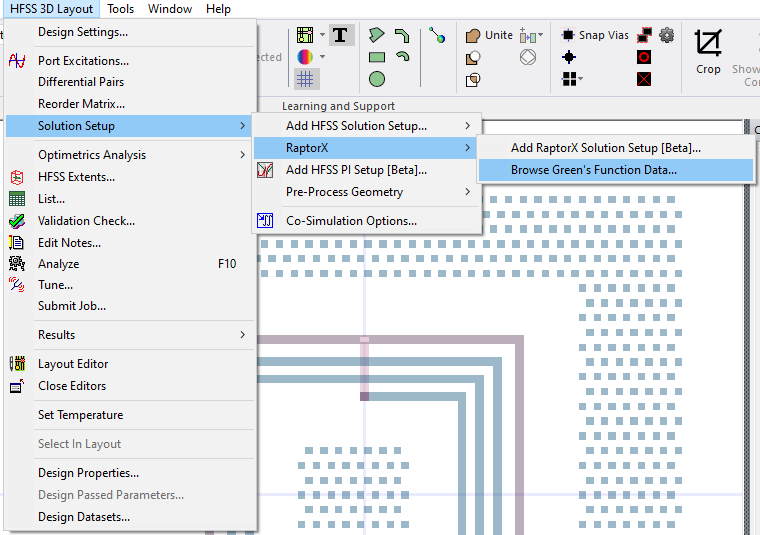

• From HFSS 3D Layout, select Solution Setup > RaptorX > Browse Green's Function Data.



Generating Green's Function Data

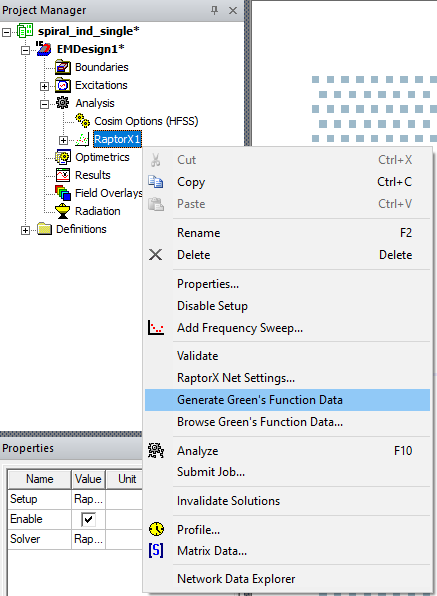

To generate Green's function data before running a simulation, navigate to the Project Manager window. Right-click the RaptorX solution setup (e.g., RaptorX1) and select Generate Green's Function Data.
