Creating or Copying Zones
Follow the instructions in the subsections below to create or copy zones.
Adding a New Zone
From the Edit Layers window, click + adjacent to the right-most column header to add a new zone with the same layers. Repeat as chosen.

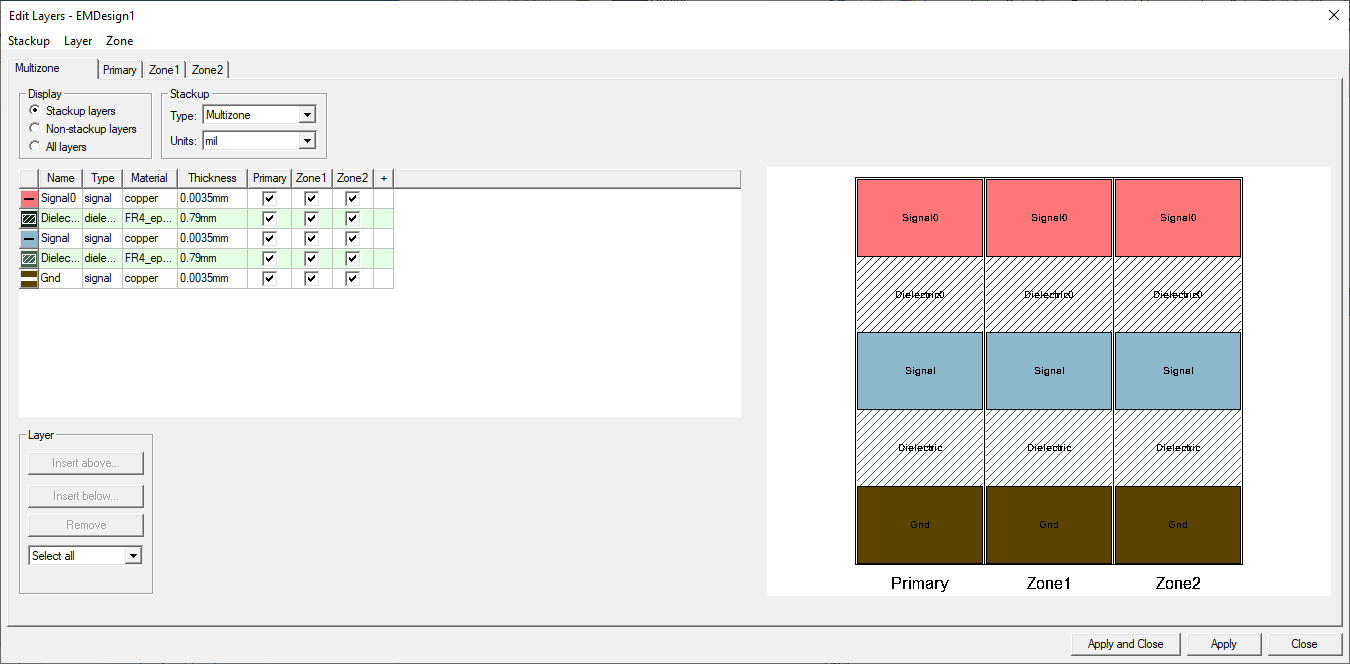

Zones will be added in sequence (i.e., to Primary, which appears by default, will be added Zone 1, Zone 2, et cetera). A new tab appears for each zone:
- Multizone – lists all layers and allows users to allocate layers to zones.
- Primary – controls layers in the Primary zone. The Primary zone may contain a subset of layers, but all components not contained in a Zone are treated as if they are in the Primary zone.
- ZoneN – control layers in their respective zone. Each zone is labeled with the corresponding zone's designation.
Adding a New Zone With Specific Layers

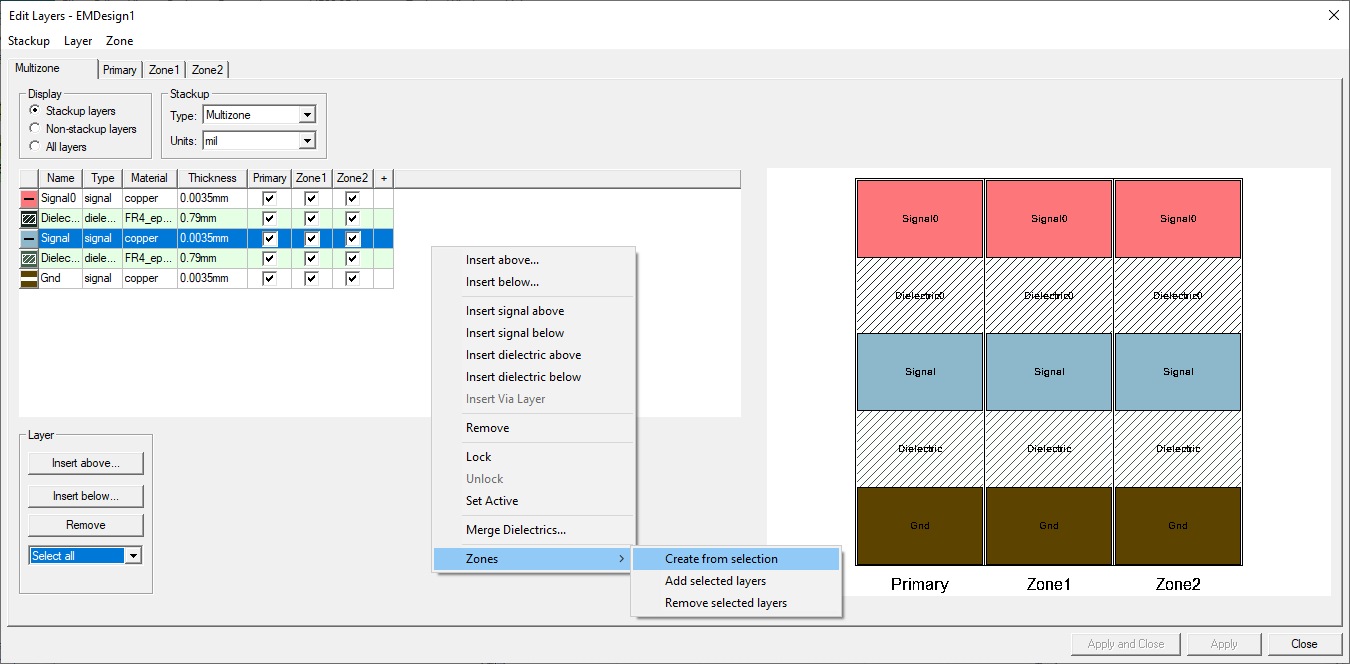

From the Edit Layers window, Ctrl+click anywhere within the chosen layer(s). Then either right-click and select Zones > Create from selection or navigate to Zones > Create from selection.

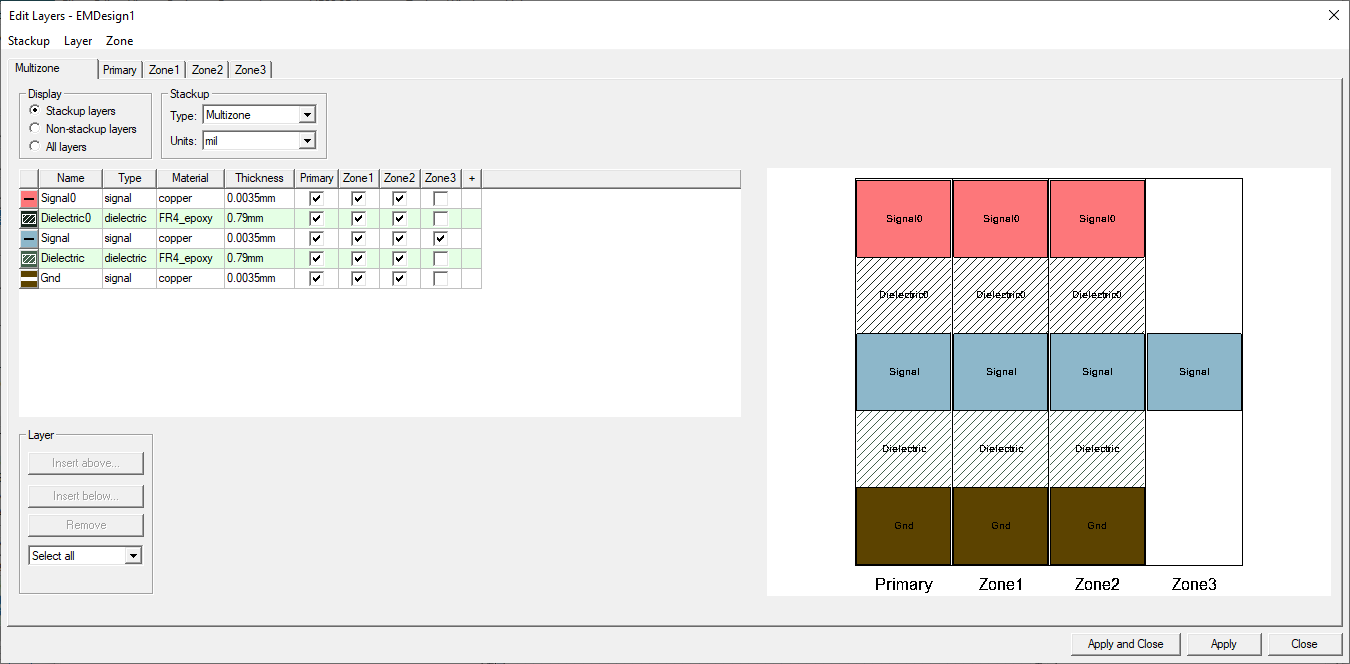

The new zone has only the highlighted layer(s).
Copying a Zone

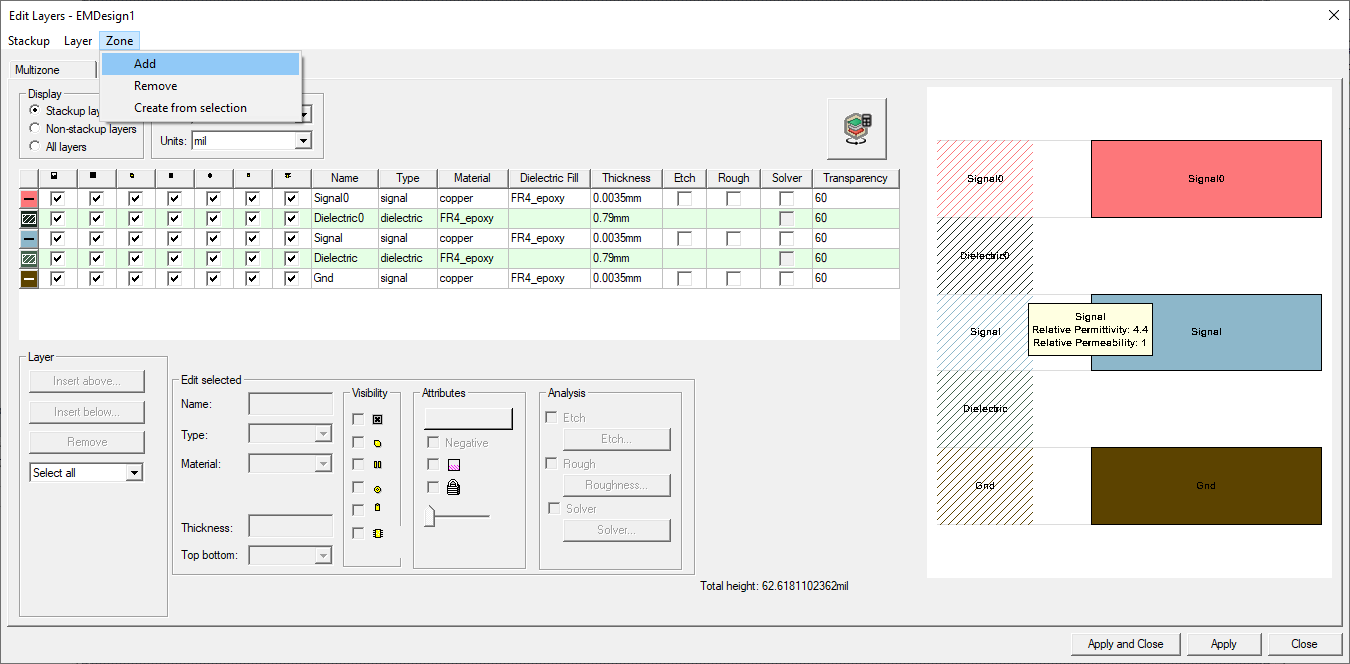

From the Edit Layers window, navigate to the chosen zone's tab and make any appropriate changes. Then navigate to Zone > Add to copy the chosen zone to the next sequential number (e.g., copying Zone 2, when Zone 3 has already been added, will designate the copy as Zone 4).
Continue to Editing Zones.
