CreateText (Schematic Editor)

Creates text.

UI Access Draw > Primitive > Text
Parameters
Name Type Description
<TextData> Array

["NAME:TextData"

"x:=", double, // X position of the object

"y:=", double, // Y position of the object

"Text:=", string, // Text to display

"Color:=", int, // the RBG value of the text color

"Id:=", int], // Id for this item

"ShowRect:=", bool, // true or false, whether to show the highlight rectangle for the text

"X1:=", double, // the text rectangle left X value, in meters

"Y1:=", double, // the text rectangle upper Y value, in meters

"X2:=", double, // the text rectangle right X value, in meters

"Y2:=", double, // the text rectangle lower Y value, in meters

"RectLineWidth:=", double, // the width of the rectangle border, in meters

"RectBordercolor:=", int, // the RBG value of the rectangle border color

"RectFill:=", int, // the rectangle fill pattern id, 0 = hollow, 1 = solid,
2 = NEDiagonal, 3 = OrthoCross, 4 = DiagCross, 5 = NWDiagonal, 6 = Horizontal, 7 = Vertical

"RectColor:=", int, // the RBG value of the rectangle fill color
<Attributes> Array

["NAME:Attributes",

"Page:=", int] // [Opt=1] Page number (one-based)

[out,retval] string id)
Return Value String with the format SchObj@<SchematicID>

Unique id

The Schematic ID can be found in the Properties window on the Symbols tab when you select the text.

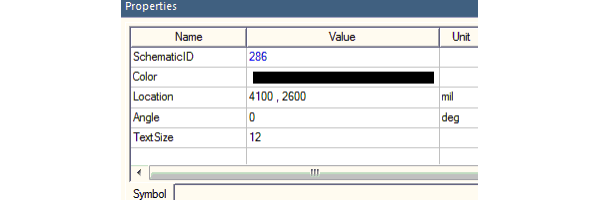

Symbol tab of the Properties window displaying the schematic ID
Python Syntax CreateText()
Python Example
oEditor.CreateText(

["NAME:TextData", "X:=", -0.0764183381088826, "Y:=",

0.040174212034384, "Size:=", 12, "Angle:=",

0, "Text:=", "Control Circuit", "Color:=",

0, "Id:=", 34, "ShowRect:=", false, "X1:=",

-0.0793287547755609, "Y1:=",

0.0407033787010528, "X2:=", -0.0502245881087778,_

"Y2:=", 0.035411712034365, "RectLineWidth:=", _

0, "RectBorderColor:=", 0, "RectFill:=",

0, "RectColor:=", 0], ["NAME:Attributes", "Page:=", 1])
