CreatePagePort (Schematic Editor)

Create a PagePort

UI Access Draw>Page Connector
Parameters
Name Type Description
<PagePortProps> Array

Array("NAME:PagePortProps"),

Array("NAME:Attributes", _

"Page:=", int, _ // [Opt=1] Page number (one-based)

Note: Page 1 always exists

"X:=", double, _ // X position of the object

"Y:=", double, _ // Y position of the object

"Angle:=", double, _ // Rotation angle (radians)

"Flip:=", bool), // True if mirrored

[out,retval] string id)
Return Value String

Unique id

The pageport is created and it has the following format:

PagePort@<portName>;<schematicID>

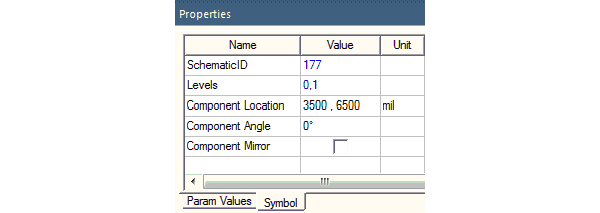

The schematic ID can be found in the Properties window on the Symbols tab when you select the pageport.







Python Syntax CreatePagePort()
Python Example
oEditor.CreatePagePort

(["NAME:PagePortProps", "Name:=", "pageport_0", "Id:=", _

12], ["NAME:Attributes", "Page:=",_

1, "X:=", -0.0381, "Y:=", -0.0127, "Angle:=", _

0, "Flip:=", false])
