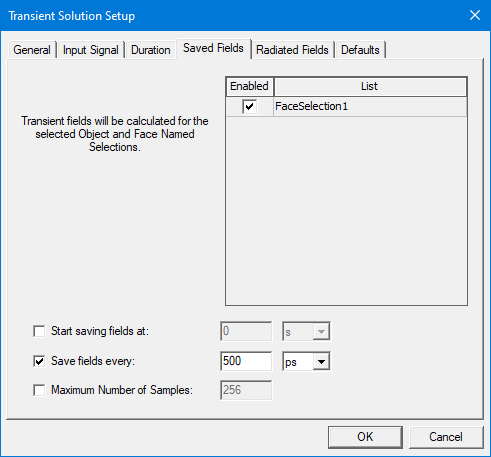

Saved Fields Tab for Transient Solution Setup

The Saved Fields tab for a transient solution setup includes an explanation that Transient fields will be calculated for the selected object selections and face selections.

Such lists are convenient for specifying the most relevant components.

If selections exist, you can also choose when to Start saving fields, the save interval, and specify the Maximum Number of Samples. Any time request by the reporter in a sweep that is not exactly on the solver setup is either interpolated or extrapolated.

Transient solutions support plotting rE, a real vector versus time, in reporter. Patterns and 3D plots will also be supported.
