Representation of a Field Quantity

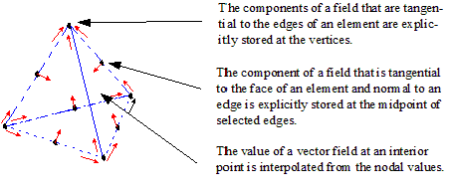

The value of a vector field quantity (such as the H-field or E-field) at points inside each tetrahedron is interpolated from the vertices of the tetrahedron. At each vertex, HFSS stores the components of the field that are tangential to the three edges of the tetrahedron. In addition, HFSS can store the component of the vector field at the midpoint of selected edges that is tangential to a face and normal to the edge (as shown below). The field inside each tetrahedron is interpolated from these nodal values.

By representing field quantities in this way, the system can transform Maxwell's equations into matrix equations that are solved using traditional numerical methods.
