Field Plots for Arrays

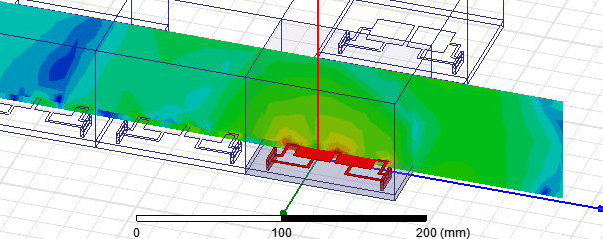

You can generate field plots on object faces, as well as on non-model planes, lines, and points. The plots display calculated fields where ever the selected geometry intersects the array cells based on whether the cells are active, passive, or padding in the array properties. Locations designated as padding are treated as background material in field calculations. The virtual cells do not need to be visible to affect the generated field plots.

You can also create animations of field plots. If the plotted geometry is controlled by a swept variable (such as plane angle or a point location) the animation displays the correct values where ever they intersect the array based on the designations as active cells, passive cells, or padding cells.
