Boundaries for Simplifying Models

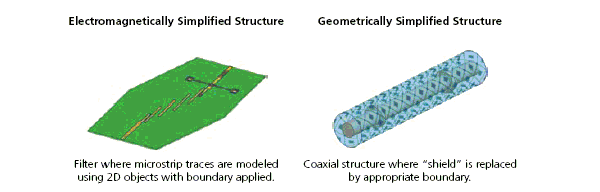

Boundaries can be used within HFSS to decrease the geometric/electromagnetic complexity of a given structure or model. These boundaries should only be used internally to a model or possibly on a symmetry plane (as in the Dielectric Resonator Antenna example or the Coax Bend Transient example). They should be applied to specifically created 2D sheet objects or to specific surfaces of 3D objects. While boundaries can be very useful, a user should exercise caution when using them as they can create unintended results if applied incorrectly.

Not every HFSS model, however, will use simplifying boundaries. When using boundaries to create simpler models, users should take care to not create a model that has unreasonable or inappropriate boundaries applied.
