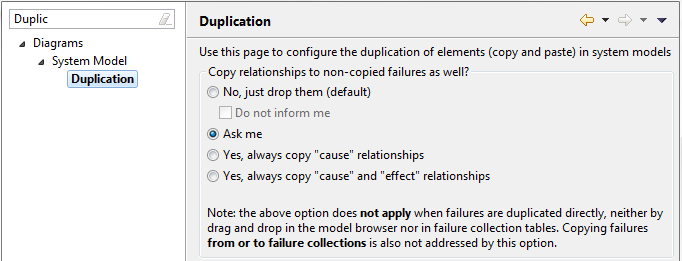

Copy Failure Relations

The duplication of relations between failures that are contained in system elements has been made more flexible and configurable. Relationships to causes and effects that are not copied (so called non-copied failures), can now optionally be duplicated as well. The option can be configured in the preferences.

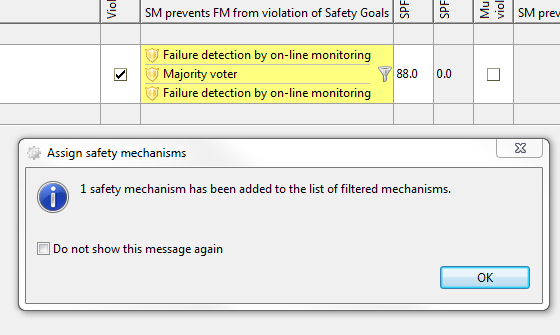

Safety Mechanism Filtering

When adding new safety mechanisms to a failure mode in a DC worksheet cell while having other existing safety mechanisms already filtered out, the new mechanism is automatically added to the list of applicable (and visible) mechanisms. The user is informed in such cases.

Ignore Hidden Lines

Hidden or filtered lines in Excel sheets can now be optionally ignored during Excel import. The new option is unchecked by default.

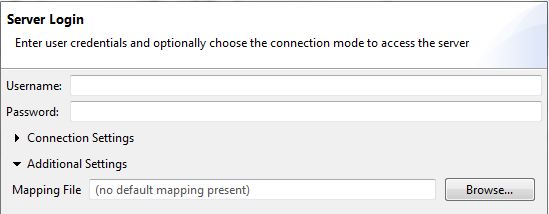

Attribute Mapping

A mapping file can be defined individually per export to PTC Integrity to override any default mapping file or to use different mapping files per export.

Import Progress

The progress reporting of the Rhapsody Importer has been improved in the way that especially for bigger projects its more obvious in which status the importer is.
