Configure the Process Launcher Service

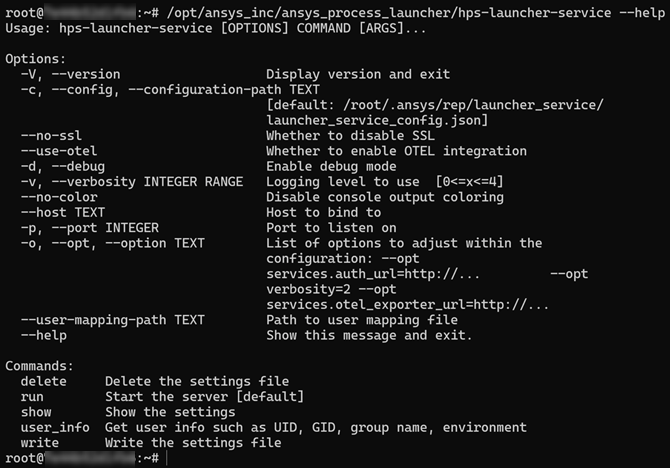

To see the available commands and options, run hps-launcher-service --help. For example:

Consistent with the other services, the Process Launcher service includes run, show, and write commands.

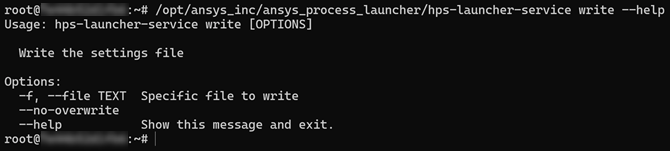

To see the help for a specific command, run the command with the --help argument. For example, to see help for the write command:

To write a configuration:

As the user running the service (root user unless changed in the systemd file), run the command hps-launcher-service write.
Use the show command to view the configuration. The “data_directory” property tells you where the scaling service configuration is located. The configuration is specified in the launcher_service.json file.
Edit the launcher_service.json file. Configurable properties are highlighted in bold in the following sample and described below.

{
    "host": "0.0.0.0",
    "port": 4911,
    "debug": false,
    "debug_middleware": false,
    "disable_ssl": false,
    "use_otel": false,
    "root_path": "",
    "origins": [
        "*"
    ],
    "verbosity": 1,
    "data_directory": "/root/.ansys/rep/launcher_service",
    "services": {
        "auth_url": "http://localhost:8080/rep/auth/realms/rep",
        "external_auth_hostname": null,
        "external_auth_port": null,
        "external_auth_protocol": null,
        "otel_exporter_url": "http://localhost:4317/",
        "monitor_url": "grpcs://localhost:8443",
        "admin_keys": [
            "groups.admin",
            "roles.admin"
        ],
        "otel_exporter_type": null
    },
    "allowed_hosts": [],
    "allowed_users": [],
    "disallowed_users": [
        "root"
    ],
    "user_mapping": {},
    "timeout_sec": 30,
    "use_sudo": false,
    "sudo_command": "sudo -u {user} -n -i",
    "getuid_method": "getpwnam",
    "min_uid": 1000,
    "min_gid": 1000,
    "grpc_headers": [
        "application-path=rep/monitor_sink"
    ],
    "logs": [
        "file",
        "console"
    ],
    "monitors": [
        "otel"
    ]
}

Property	Description	Default value	Option to configure property (in hps-launcher-service command options)
"host"	The network interface on which the Process Launcher runs	0.0.0.0	--host TEXT
"port"	The port on which the Process Launcher runs	4911	-p, --port INTEGER
"debug"	Debug toggle for extra debugging information	false	-d, --debug
"disable_ssl"	Disables ssl checking	false	--no-ssl
"data_directory"	Default directory for configuration files and logs	<serviceuser>/.ansys/rep/launcher_service/
"auth_url"	Path to Keycloak Realm	https://localhost:8443/rep/auth/realms/rep
"allowed_users"	List of usernames that are allowed to contact the service. If this list is empty, it is assumed all users are allowed.
"disallowed_users"	List of usernames that are not allowed to contact the service	root
"user_mapping"	This property has two roles: Used to add mappings from userA to userB when the username used on the corporate network is not the same as the username used on the HPC network. Used to add the service user for running tasks that are not user-based, such as querying the job scheduler for queues and hardware. The user "service-account-rep-impersonation" should be mapped to a user who can query the job scheduler. To define mappings, specify a comma-separated list using the following format: "userA": "userX", "userB": "userY".		Instead of explicitly specifying a list in the configuration file, you can use the --user-mapping-path TEXT option to specify a path to a user mapping file. The user mapping file should contain a single JSON object containing string key-value pairs defining the user mappings, for example: { "user_a": "user_b", "user_c": "user_d" } The user mappings contained in this file will configure the “user_mapping” property in the settings, overwriting any existing mappings.
"use_sudo"	Launch processes using sudo. If true, Process Launcher launches processes using the command specified in “sudo_command”.	false
"sudo_command"	The command used to launch processes using sudo. This is a Python “f-string” that must contain the variable “{user}”, which will be replaced by the username of the user submitting the request.	sudo -u {user} -n -i
"getuid_method"	Method to get the UID (user identifier). A UID is a number assigned to each Linux user. The default method is "getpwnam", which gets user information using inbuilt functions. If an alternate method is needed, the "id_command" method can be used to get the same information using the id command line utility in Linux.	"getpwnam"
"min_uid"	Minimum user account ID allowed to contact the system	1000
"min_gid"	Minimum group ID allowed to contact the system	1000
