: Display or hide the coordinate system axis.

A coordinate system axis is displayed by default in the bottom left corner of the graphics window for a better 3D orientation.

 : Plot box with coordinate system.

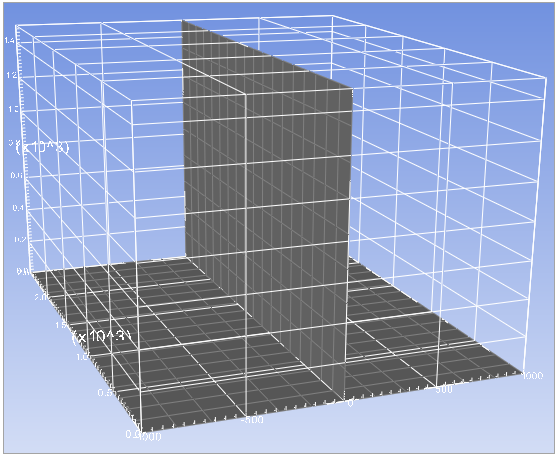

Figure 1.33: Enclosed Box and Coordinate System

 : Distance measure tool. Select two mesh points to display their coordinates and the distance between them in the bottom-left corner. Close all dialogs to enable this feature.

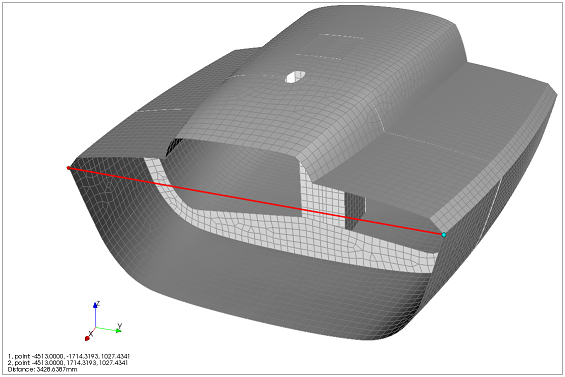

Figure 1.34: Distance Measure Tool
