Geometry Fidelity control is a wrapper feature that improves the edge feature capture after the wrapper projection.
Geometry Fidelity uses faces as input. When you scope a part, Geometry Fidelity includes all faces in that part. If you scope a label, label must contain faces. When you scope by zone, Geometry Fidelity scopes only face zones, not volume zones or edge zones.
The following image shows the Wrap operation without Geometry Fidelity.

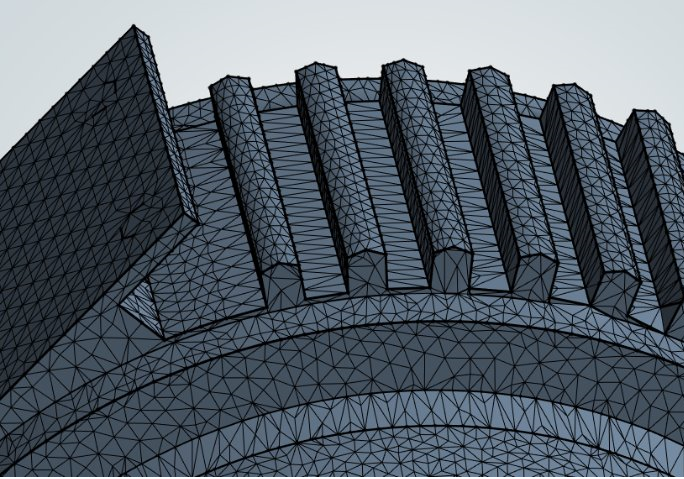

The following image shows the Wrap operation with Geometry Fidelity.
Geometry Fidelity Details view has the following options:
General
Control Type: Displays the selected control type.
Scope
Define By: Allows you to define the input to the selected control. The available options are Value and Outcome.
Value: Allows you to set manually the value of the Scoping Method and Scoping Pattern.
Outcome: Allows you to select the existing scoped outcomes from the previous steps as input.
Scoping Method: Allows you to select the entities for the selected control. The available options are:
Part: Allows you to select parts for defining the scope of the control.
Label: Allows you to select labels for defining the scope of the control.
Zone: Allows you to select zones for defining the scope of the control.
Scoping Pattern: Allows you to specify the name pattern to get the selected Scoping Method. Scoping Pattern supports Regular Expression. You can click
on the right corner of the option and the
following options are available:Publish: Publishes Scoping Pattern to the Property Worksheet.
Scope All: Inserts '.*' regular expression to scope all entities.
Definitions
Capture Internal Edges: Allows you to capture internal edges to preserve geometric features when Capture Internal Edges set to Yes.
