29.10.2. User Inputs for Tracking Material Points

The procedure for specifying the tracking of material points is as follows:

  1. Create a new sub-task.

      Create a sub-task

    1. Select Postprocessor as the sub-task type.

        Postprocessor

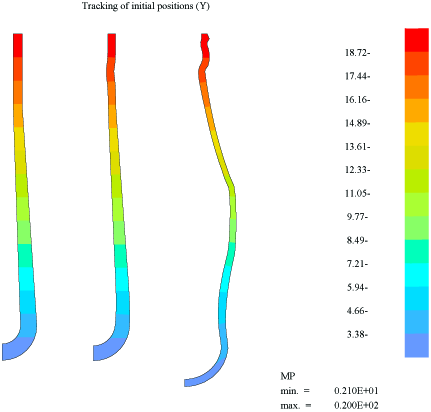

      Figure 29.2: Contour Lines of the Initial y Position

      Contour Lines of the Initial y Position

    2. When prompted, enter a name for the postprocessor sub-task.

  2. In the F.E.M. Task Postprocessor menu, select Tracking of material points.

      Tracking of material points

    Ansys Polydata will tell you where the calculation will be performed. You can click OK to continue.
