Figure 12.202: Steps to create a water entity
| Step | Operation |
| 1st step | Select on the ribbon menu as shown in the figure above. |
| 2nd step | Select the Water entity as shown in the figure above. |
| 3rd step | Select the base body. The base is the parent body for Water. |
| 4th step | Define position of water reference frame or water surface reference frame. |
| 5th step | Define the Z-direction of water reference frame. |
| 6th step | Define the X-direction of water reference frame. |

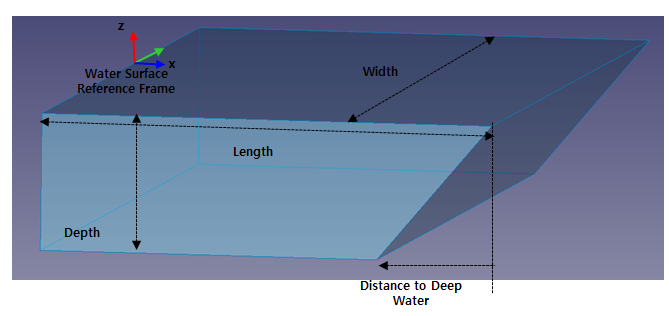

| 7th step | Define the shape of water |
| 8th step | Define entity name |
| 9th step | Click the or button. |
