CLOAD Range can be created by defining a range with the center point and radius as shown in the figure below. Parameters in the creation dialog are defined as shown in the table below.

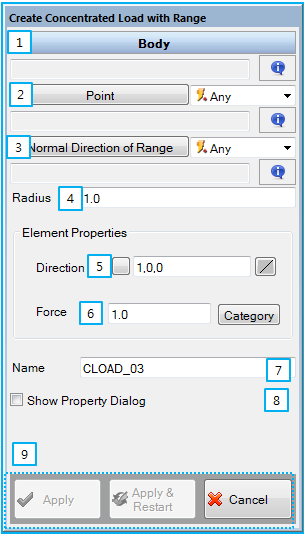

Figure 10.32: Description of parameters in the CLOAD Range creation dialog
| Parameter | Description |
| 1. Body | Use to set the body by General Picker. The CLOAD is applied on this body. |
| 2. Point | Use to set the center point of range by Point Picker. |
| 3. Normal Direction… | Use to set the normal direction of range by Direction Picker |
| 4. Radius | Use to set the radius of range. |
| 5. Direction | Use to set the force direction by Direction Picker. |
| 6. Force | Use to set the value or simple function expression for the force. This force is total force applied on the range. |
| 7. Name | Use to set a name of CLOAD. |
| 8. Show Property Dialog | Use to open the property dialog after finishing the creation operation. |
| 9. Control buttons | If all necessary parameters are set, the buttons are enabled. If you want to know the control buttons, refer the Entity Creation. |
