Connecting properties such as the base marker and node set are defined in the Boundary Condition creation dialog as shown in the figure and table below.

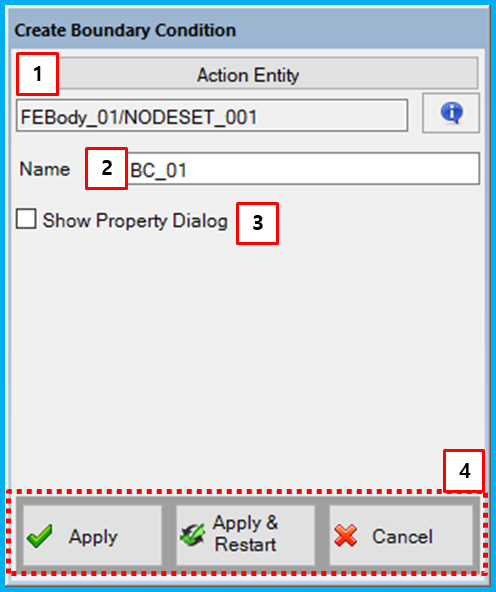

Figure 5.75: Description of parameters in the Boundary Condition creation dialog
| Parameter | Description |
| 1. Action Entity | Use to set the Node set of the nodal flexible body using the General Picker. |
| 2. Name | Use to set the name of the Boundary Condition. |
| 3. Show Property Dialog | Use to open the property dialog after finishing the creation operation. |
| 4. Control buttons | If all necessary parameters are set, these buttons are enabled. For more information about the control buttons, refer to Entity Creation. |
