14.7.5. Clearance Force

A clearance force is created when a component is added to the Shaft Set or housing to represent the connection between each component. The clearance force is classified in axial and radial directions.

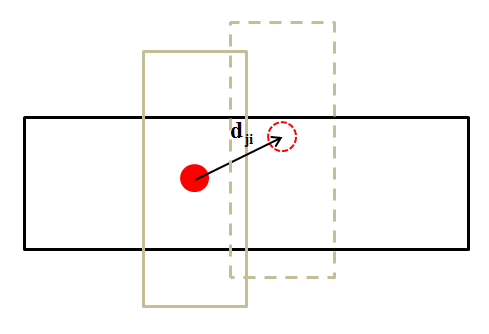

Figure 14.277: Clearance schematic

Clearance schematic

(14–71)

where, K is a penalty, cl is a clearance, and c is a proportional damping ratio relative to K.
