14.3.5.2. Add Rack and Pinion

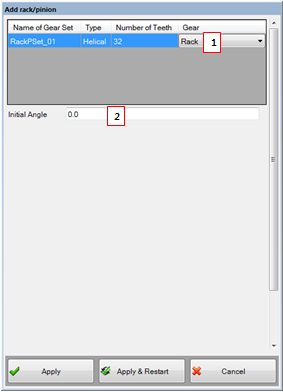

Figure 14.55: Adding a Rack and Pinion to a simple Shaft Set

Adding a Rack and Pinion to a simple Shaft Set

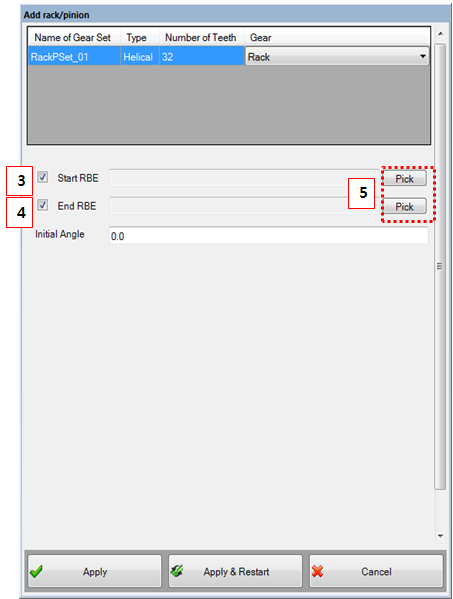

Figure 14.56: Adding Rack and Pinion to a FE/EasyFlex Shaft Set

Adding Rack and Pinion to a FE/EasyFlex Shaft Set

Figure 14.57: Parameters in the add rack to Shaft Set dialog

ParameterDescriptionDimension
1. GearUse to add an available rack. If a rack has already been added to other Shaft Set, the rack can't appear in this combo control.N/A
2. Initial angleUse to set the initial rotation of the rack. If the value is defined, the rack bar will be rotated about the rotating axis of the shaft.Angle
3. Start RBEUse to set the start RBE for the connection with a starting point of the rack. This option is only available on FE/EasyFlex Shaft Set.N/A
4. End RBEUse to set the end RBE for the connection with an end point of the rack. This option is only available on FE/EasyFlex Shaft Set.N/A
5. PickUse to select a RBE by General Picker. This option is only available on FE/EasyFlex Shaft Set.N/A
