Figure 14.65: Add a point load to a Shaft Set

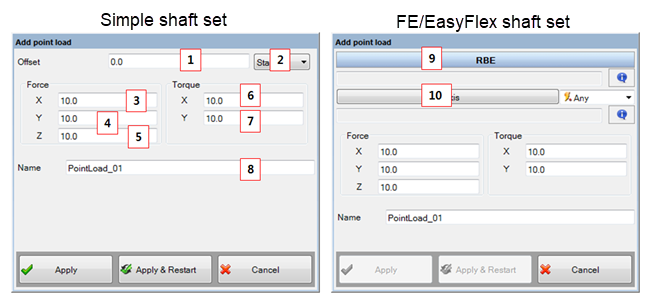

Figure 14.66: Parameters in the Add point load to Shaft Set dialog

Parameter	Description	Dimension
1. Offset	Use to set the offset which is a distance from the reference side of the Shaft Set.	Length

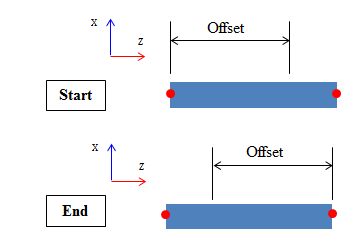

2. Reference side	Use to set the reference side as follows.	N/A
3. Force X	Use to set the force along with X-axis.	Force
4. Force Y	Use to set the force along with Y-axis.	Force
5. Force Z	Use to set the force along with Z-axis.	Force
6. Torque X	Use to set the toque along with X-axis.	Torque
7. Torque Y	Use to set the toque along with Y-axis.	Torque
8. Name	Use to set the name of point load.	N/A
9. RBE	Use to select a RBE for the point load. This option is available on FE/EasyFlex Shaft Set.	N/A
10. Z-axis	Use to define the shaft rotating axis. This option is available on FE/EasyFlex Shaft Set.	N/A
