A sample to show how to add commonly used functions to Favor1 using the Define toolbar interface.

Step 1:

Go to the menu Settings->Toolbar Manager dialog.

Step 2:

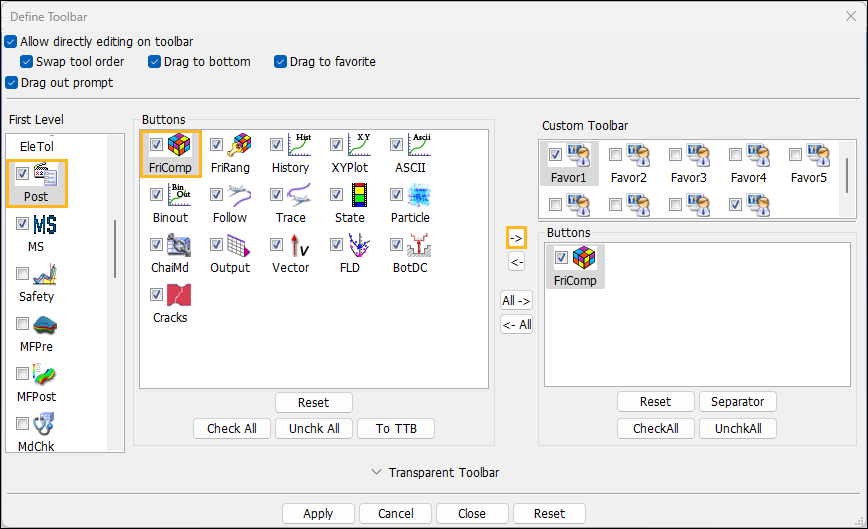

Select Post from the First Level list and then FriComp from the Buttons list. Then click the "->" button to add it to the selected Favor1 Custom Toolbar, as shown:

Figure 3.11: Add FriComp to Favor1

Step 3:(continue to add more icon to Favor1)

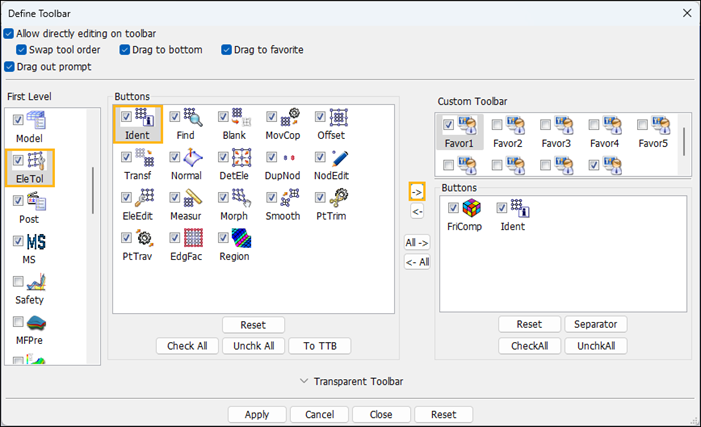

Select EleTol from the First Level list and then Ident from the Buttons list. Then click the "->" button, as shown:

Figure 3.12: add Ident to Favor1

Step 4:

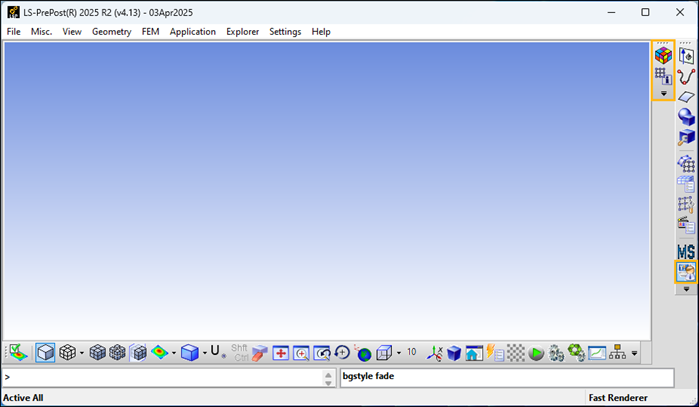

Click Apply to take effect, Closethe Define toolbar interface, then click icon Favor1 on the right toolbar, you will see that Ident and FriComp are added to Favor1:

Figure 3.13: Apply settings
