6.1. Load Airbag

Choose Application > DynFold from the menus.

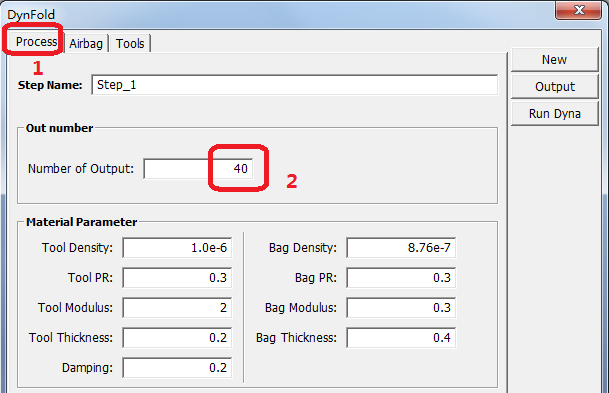

  1. Select the Process tab

  2. Enter Number of Outputs = 40

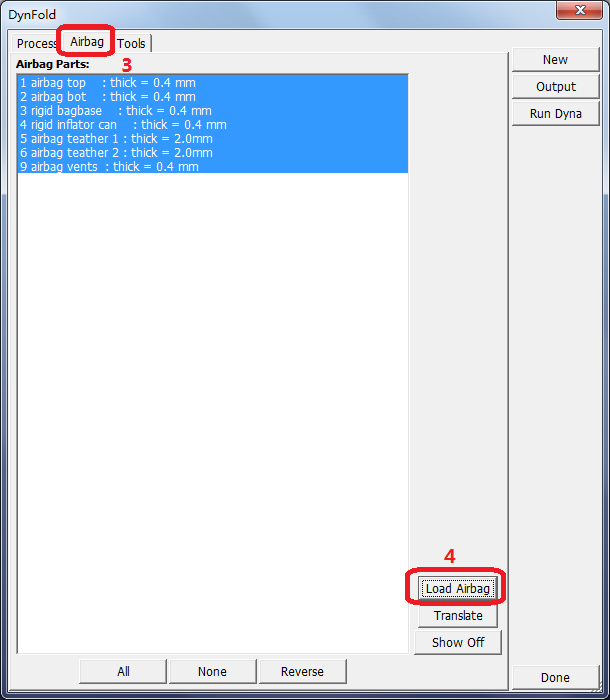

  3. Select the Airbag tab

  4. Click Load Airbag button to load file lmesh_bag.k

    Note:  If some parts' position is not good, you can use button Translate to adjust it.
