3.3. Create Simple Shoulder Belt

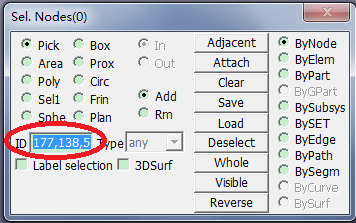

  1. FEM > Element Tools > Identify.

  2. Enter Key in ID = 177,138,50,168.

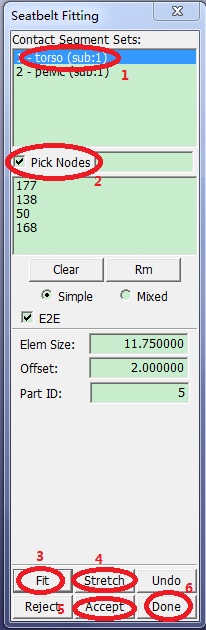

  3. Press Enter on the keyboard.

  4. Application > Seatbelt Fitting .

  5. Select 1 - torso from the Contact segment set list.

  6. Activate Pick Nodes.

  7. Pick nodes 177, 138, 50, 168 in the graphics window (in that order).

  8. Click Fit.

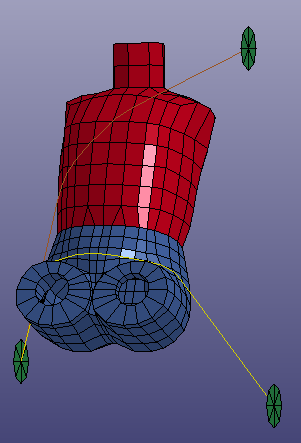

  9. Click Stretch.

  10. Click Accept.

  11. Click Done.

  12. File > Save Keyword.

  13. Enter Filename: simple_belts.k.

  14. Click Save.
