4.4. Add an Annotation Using the Annotation Interface

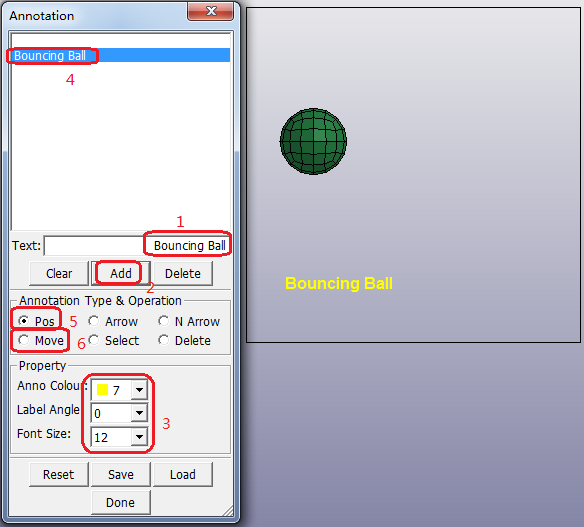

  1. Click FEM > Model and Part > Annotation.

  2. In the field Text, enter Bouncing Ball.

  3. Click Add.

  4. Set Anno Colour: Yellow.

  5. Set Label Angle: 0.

  6. Set Font Size: 12.

  7. Select Bouncing Ball in the top list.

  8. Left-click and drag the mouse in the graphics window to position the text.

  9. Use the Move operation to adjust font position.

  10. Click Reset to clear the annotation and Done to quit this interface.
