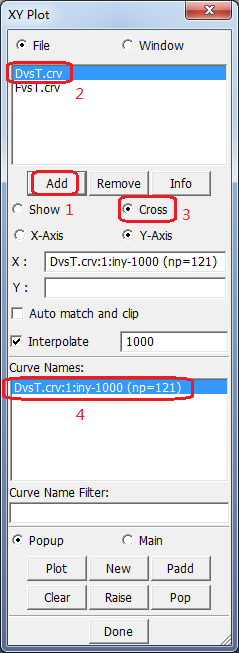

2.7. Define X-Axis for Cross Plot

  1. Click FEM > Post > XY plot.

  2. Click Add to load the Fvst.crv file and DvsT.crv file.

  3. Select DvsT.crv.

  4. Select Cross.

  5. Select DvsT.crv:iny-1000(np=121) in the bottom panel list.

    Note:  At this point, selection automatically changes from X-Axis to Y-Axis.
