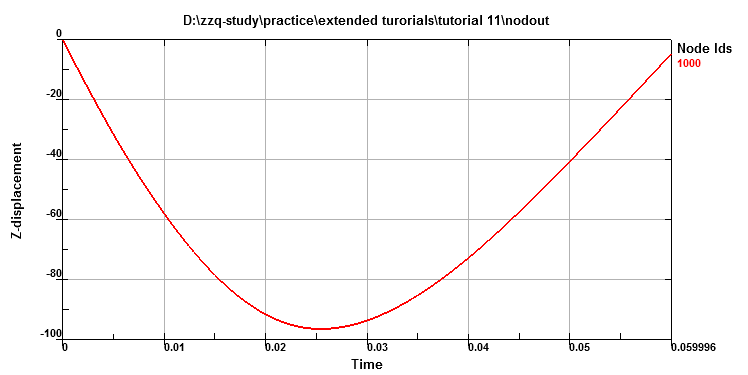

2.4. Plot Displacement vs. Time curve

  1. Click FEM > Post > ASCII.

  2. Select nodout from the upper list.

  3. Click File.

  4. Open nodout.

  5. Select 1000 from the middle list.

  6. Select Z-displacement from the lower list.

  7. Select Main and click New.
