1.3. Generate HIC Plot

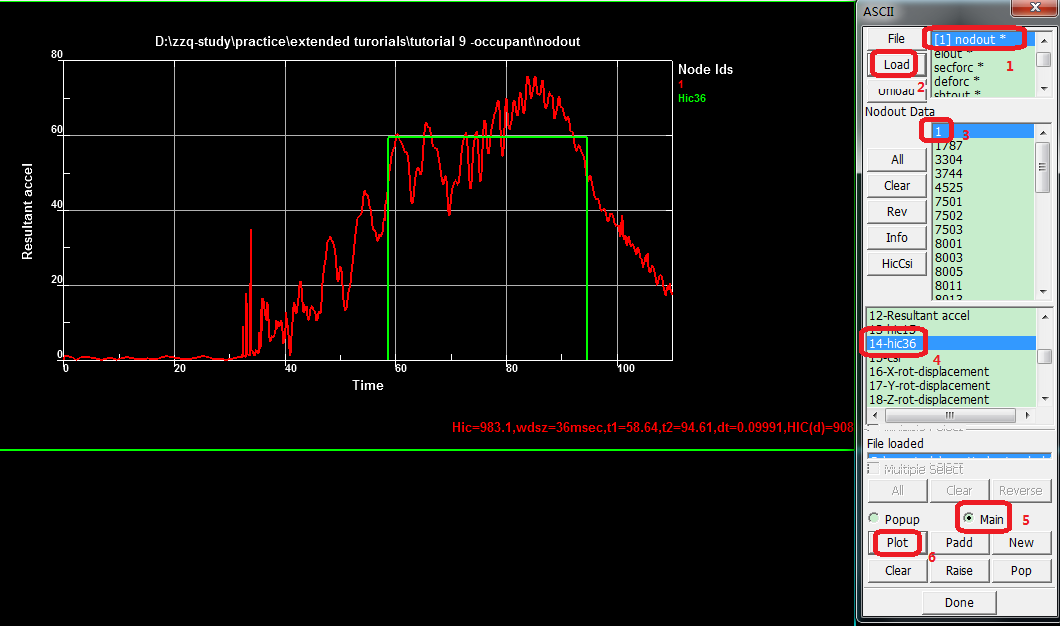

  1. Click FEM > Post > ASCII.

  2. Select nodout * from the top list.

  3. Click Load.

  4. Select 1 from the middle list.

  5. Select 14-hic36 from the bottom list.

  6. Click Main.
