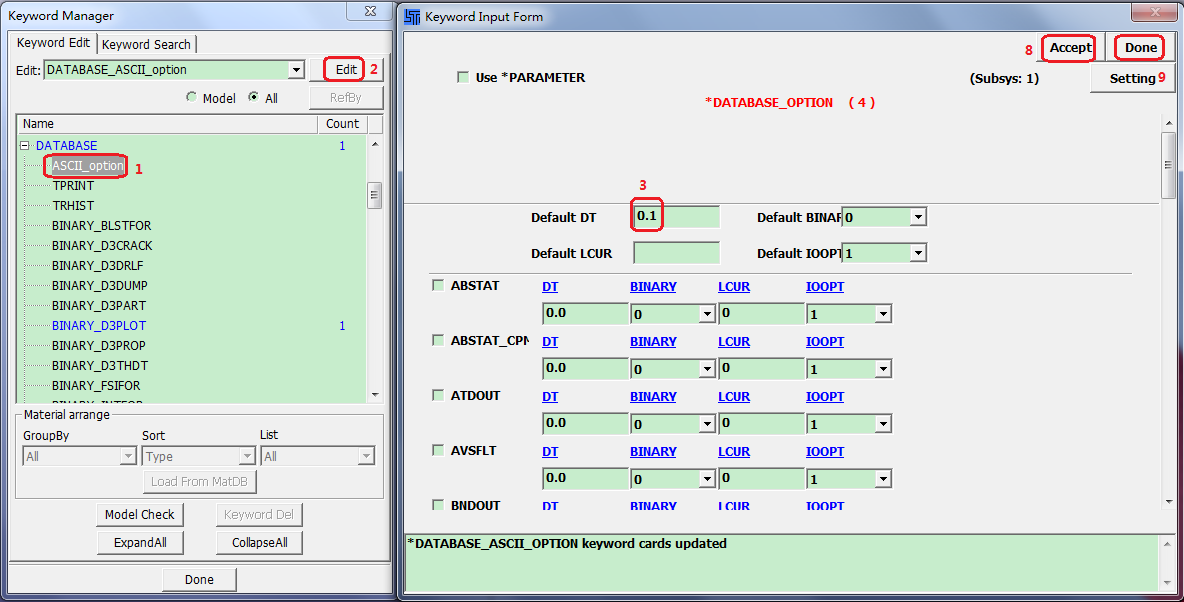

3.12. Set ASCII Time History Outputs

  1. Select ASCII_option from the list.

  2. Click Edit.

  3. Enter Default DT=0.1 in the KEYWORD INPUT popup form.

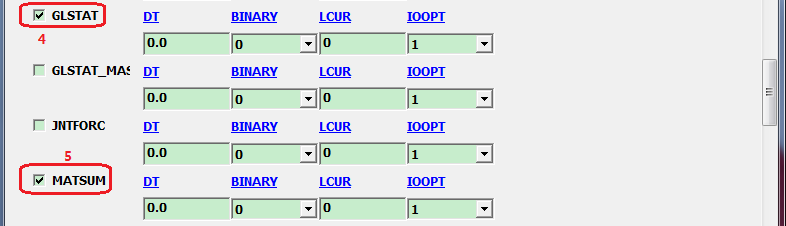

  4. Activate GLSTAT (global statistics).

  5. Activate MATSUM (material energy summary).

  6. Activate RWFORC (rigidwall force).

  7. Activate SWFORC (spotweld force).

  8. Click Accept.

  9. Click Done.
