2.4. Prepare Outer Edges of Bag

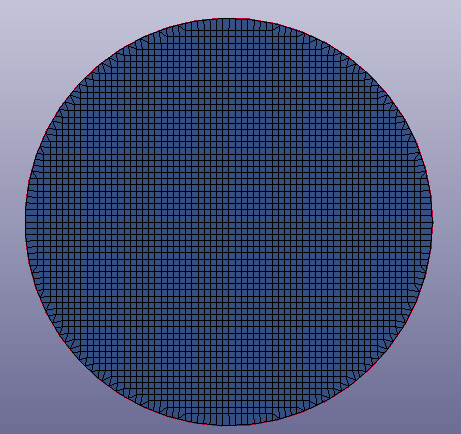

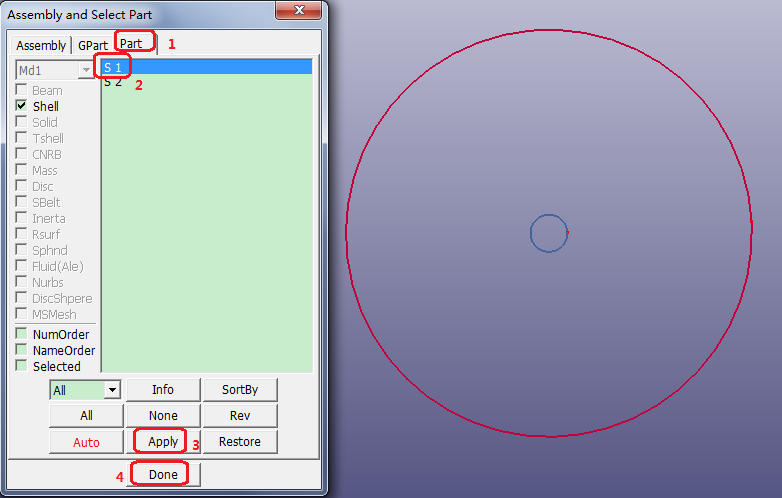

Choose FEM > Model and Part > Assembly and Select Part from the menus.

  1. Select Part.

  2. Select S1 and click Edge render button.

  3. Click Apply.

  4. Click Done.

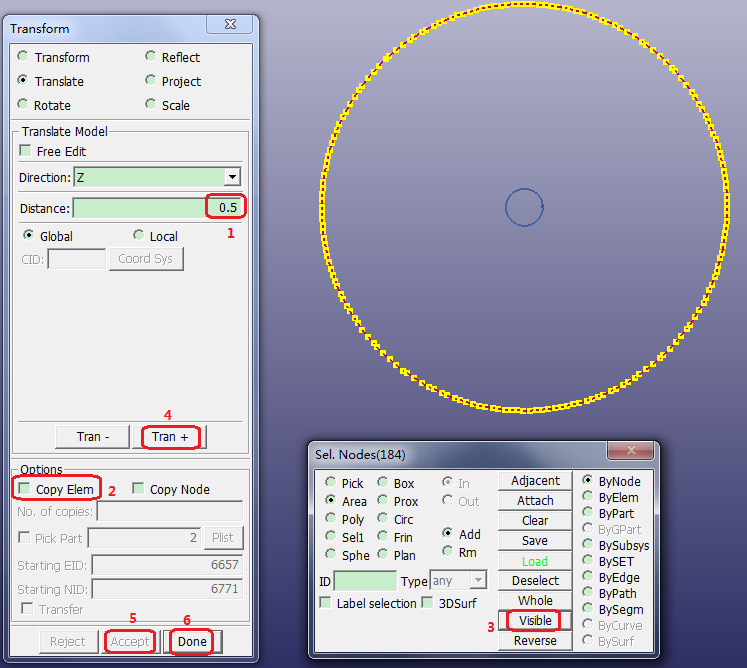

Choose FEM > Element Tools > Transform from the menus.

  1. Enter Distance: 0.5.

  2. Deactivate Copy Elem.

  3. Click Visible in gen select panel.

  4. Click Tran+.

  5. Click Accept.

  6. Click Done.

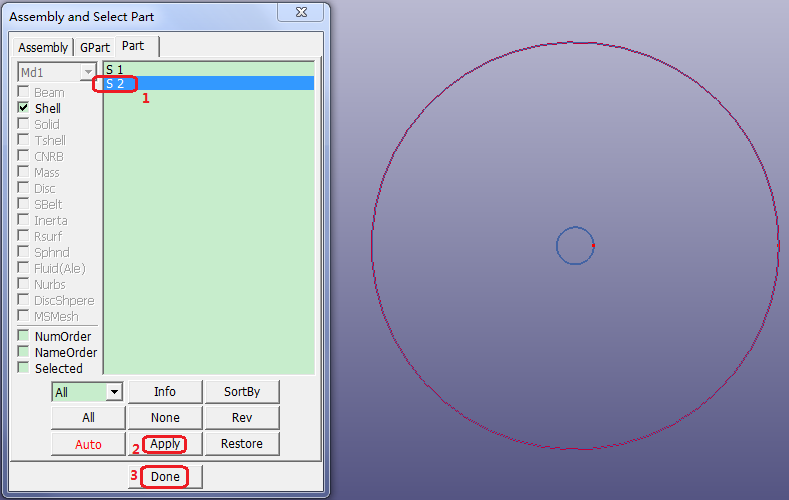

Choose FEM > Model and Part > Assembly and Select Part from the menus.

  1. Select S2 from the list.

  2. Click Apply.

  3. Click Done.

  4. Click Edge render button.

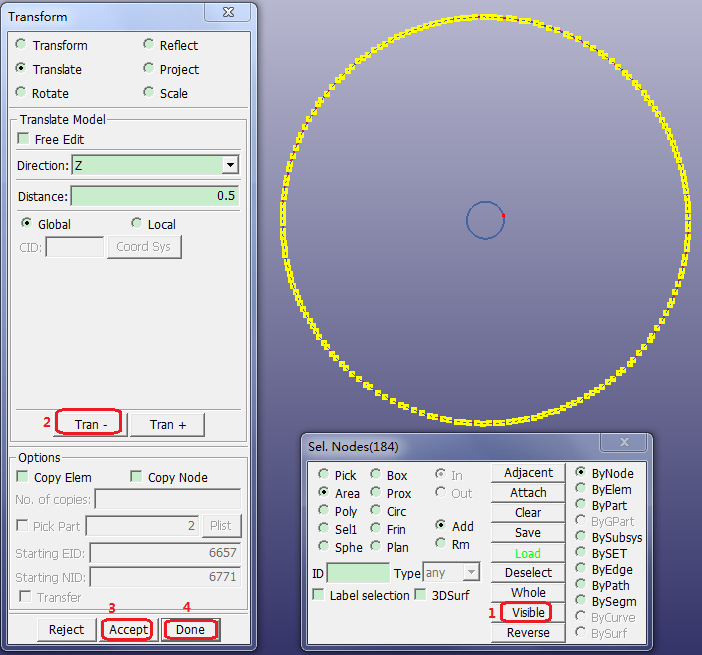

Choose FEM > Element Tools > Transform from the menus.

  1. Click Visible in gen select panel.

  2. Click Tran-.

  3. Click Accept.

  4. Click Done.

Choose FEM > Model and Part > Assembly and Select Part from the menus.

  1. Select S1 and S2 from the list.

  2. Click ShaEle render button.
