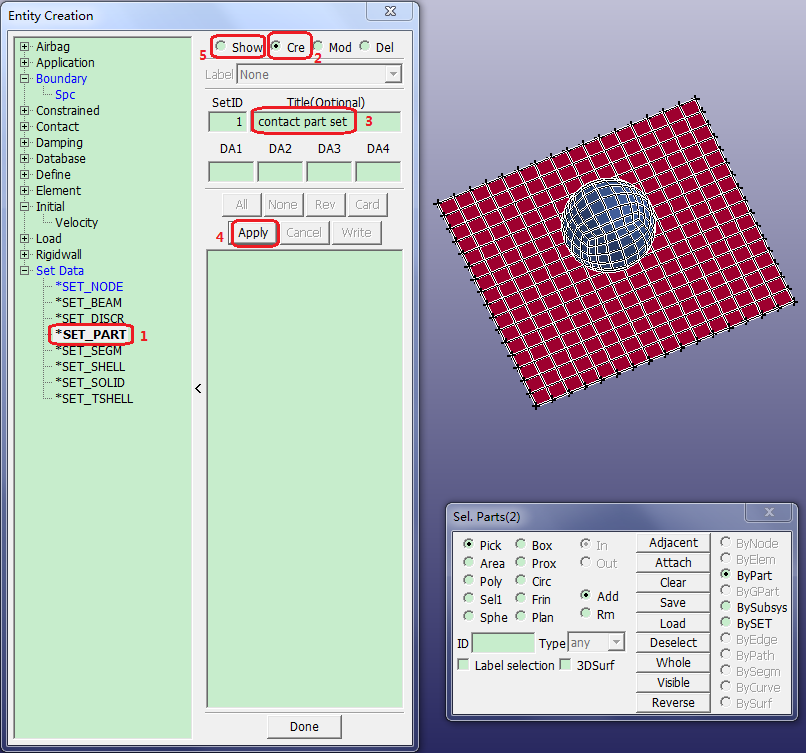

1.9. Create Part Set for Contact

  1. Select Set Data > *SET_PART from the list.

  2. Select Cre.

  3. Enter Title: contact part set, pick the plate, and pick the ball in the graphics window.

  4. Click Apply.

  5. Select Show.

  6. Click Done.
