1.7. Specify Boundary Conditions

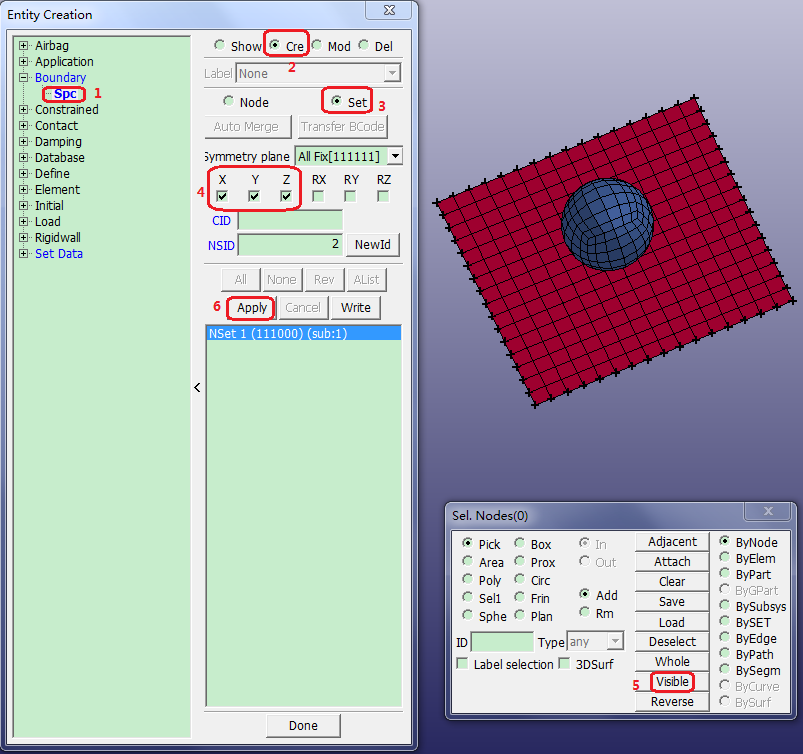

Choose FEM > Model and Part > Create Entity from the menus.

  1. Select Boundary > Spc from the list.

  2. Select Cre.

  3. Select Set.

  4. Activate X, Y, and Z. Then click the Edge render button.

  5. Click Visible in gen select panel.

  6. Click Apply.

  7. Click ShaEle render button.
