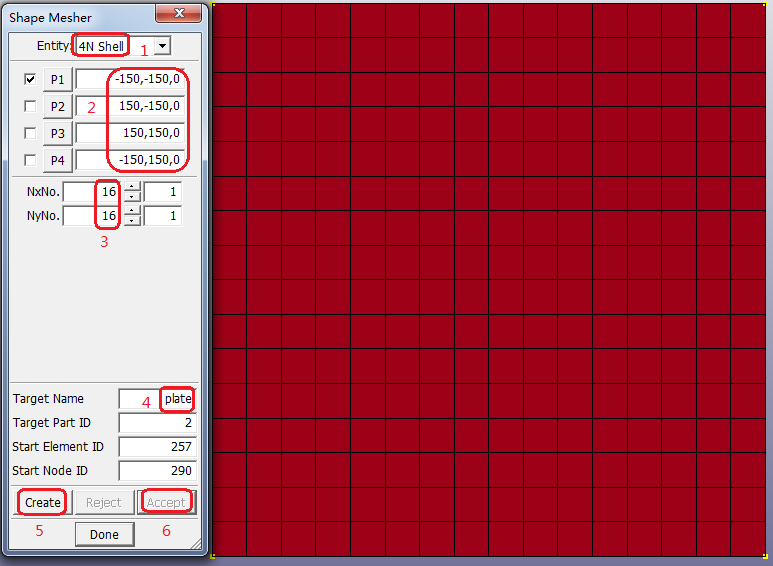

Contents Part III: Model Tutorials | Chapter 1: Create an LS-DYNA Input Deck for a Ball Impacting a Plate | Print page 1.1. Create the PlateChoose FEM > Element and Mesh > Shape Mesher from the menus.Select Entity: 4N-Shell.Enter P1 = -150,-150,0; enter P2 = 150,-150,0; enter P3 = 150, 150,0; and enter P4 = -150, 150,0.Enter NxNo. = 16 and enter NyNo. = 16.Enter Target Name: plate.Click Create.Click Accept. « Chapter 1: Create an LS-DYNA Input Deck for a Ball Impacting a Plate 1.2. Create the Ball »
