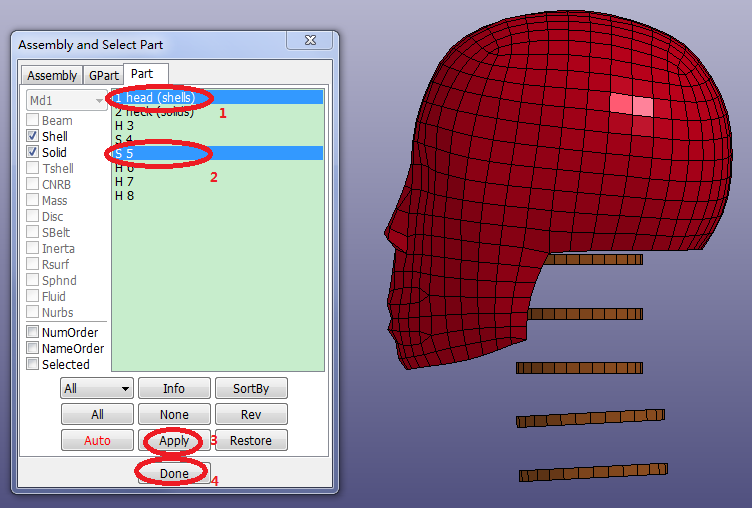

4.10. Clean up the Model

  1. Click FEM > Model and Part > Assembly and Select Part.

  2. Select 1 head (shells) and S 5 from the list.

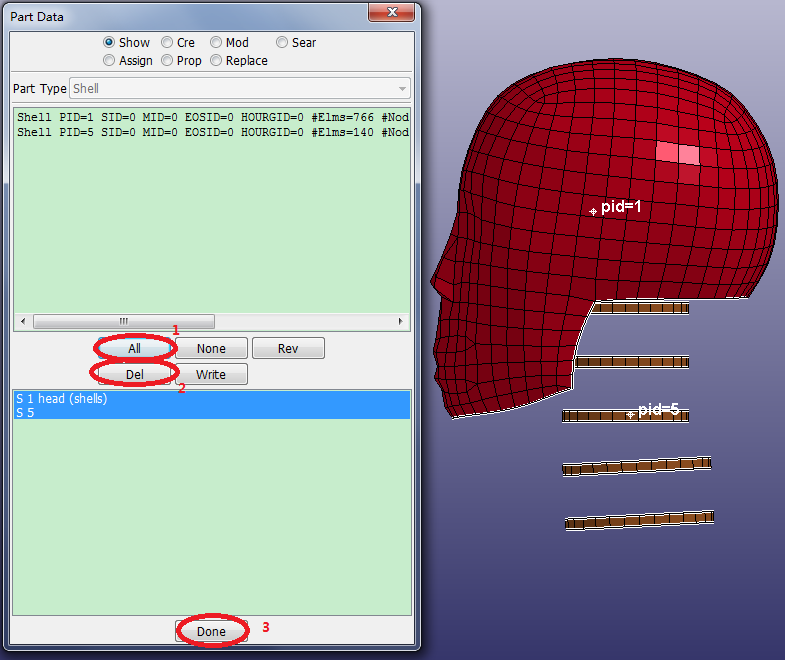

  3. Click Right render button.

  4. Click FEM > Model and Part > Part Data.

  5. Click All.

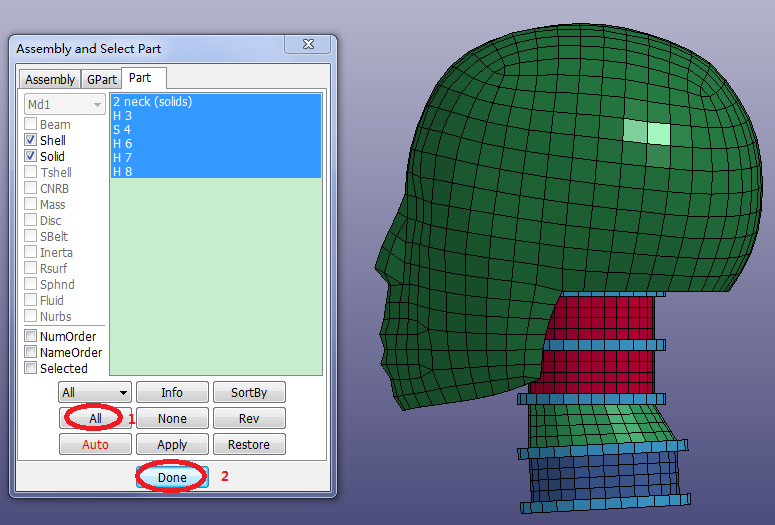

  6. Click Del.

  7. Click FEM > Model and Part > Assembly and Select Part.

  8. Click All.
