2.12. Reflect Elements

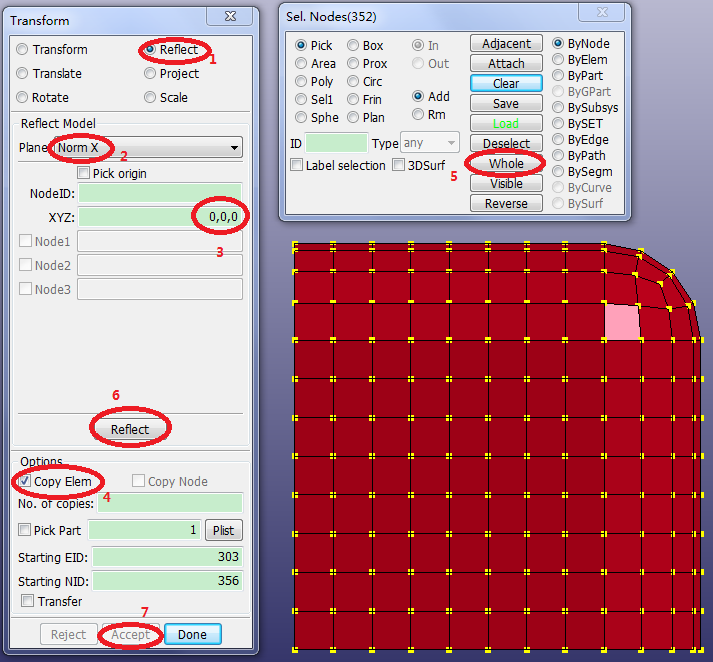

  1. Click FEM > Element Tools > Transform.

  2. Select Reflect.

  3. Select Plane: Norm X.

  4. Enter XYZ=0,0,0.

  5. Activate Copy Elem.

  6. Click Whole in the lower panel (gen select panel).

  7. Click Reflect.

  8. Click Accept.

  9. Repeat the steps from the previous page reflecting a copy of the whole model using Plane: Norm Y.

  10. Repeat again using Plane: Norm Z.

  11. Click Done.
