Color Light Properties

Light Properties


Parameter	Description
Color	Choose the Color of a light based on an RGB/HSV spectrum.
Diffuse Intensity	Set the diffuse part of a light in lumen.
Specular Intensity	Set the intensity of the bright spots appearing on shiny object in lumen.


Shadow Type	Description
Static	This type casts shadows only one time and allows light interactions with objects.
Dynamic	This type casts shadows in real time on each frame of the shadow map. Only works with point light.
Dynamic Basic	This type casts shadow with 1-split shadow map. Only works with directional lights.
Dynamic Accurate	This type casts shadows with Parallel-Split Shadow Maps. Only works with directional lights.

For further details on shadow management, see Shadow Overview.

Note: The Rendering parameter is only available for Color Point Light.


Parameter	Description

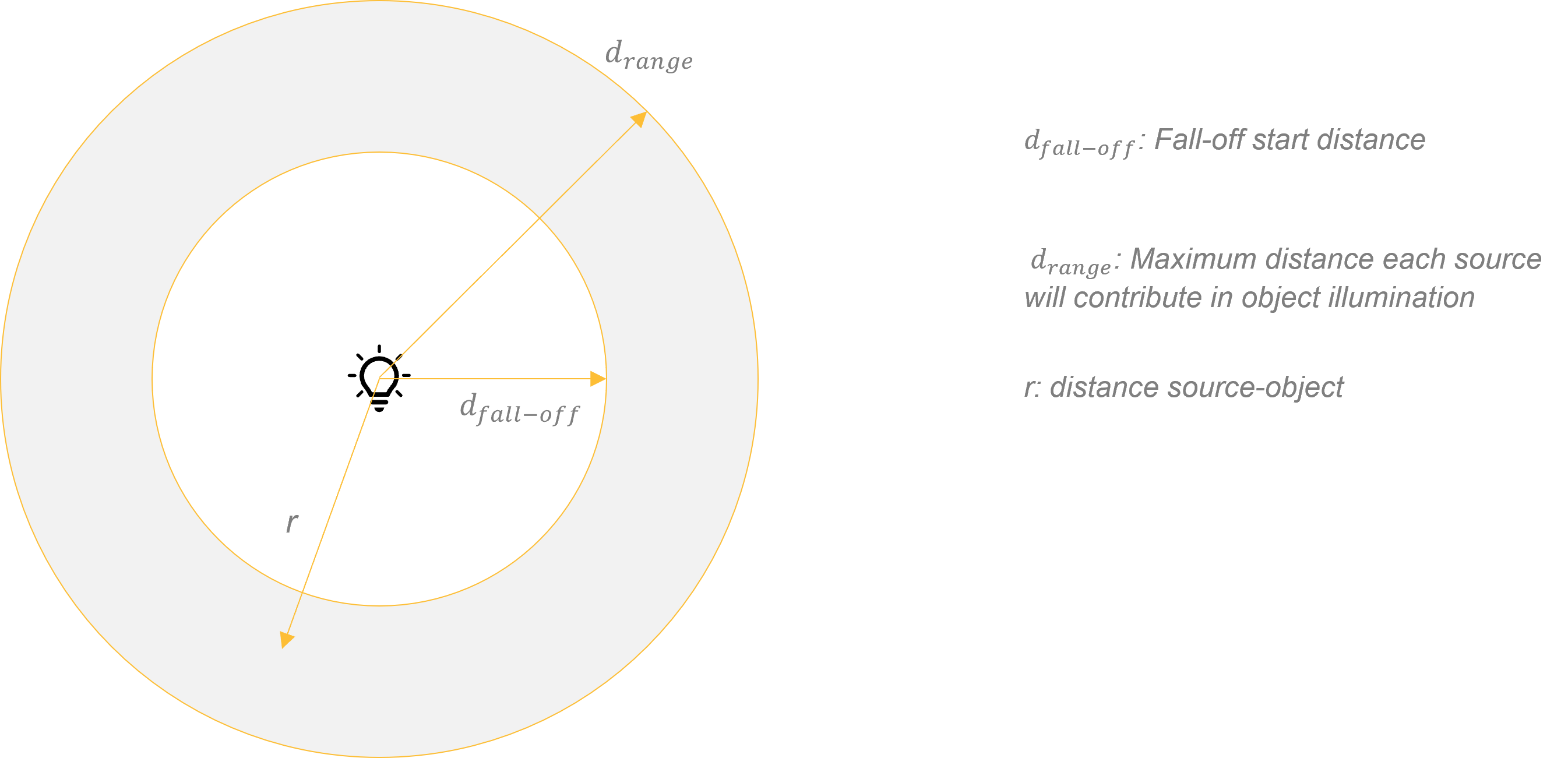

Range (m)	Define a Range value in meter to set how far the light radiates.
Falloff Start Distance (m)	Define a Falloff Distance in meter to force the radiated light to decrease linearly until the range distance is reached.
Gobo Texture	Drag and drop a texture file to project a stencil on a surface.

The Range (m) and Falloff Start Distance (m) parameters are used to determine the lighting contribution. Luminance is attenuated by factor a.
